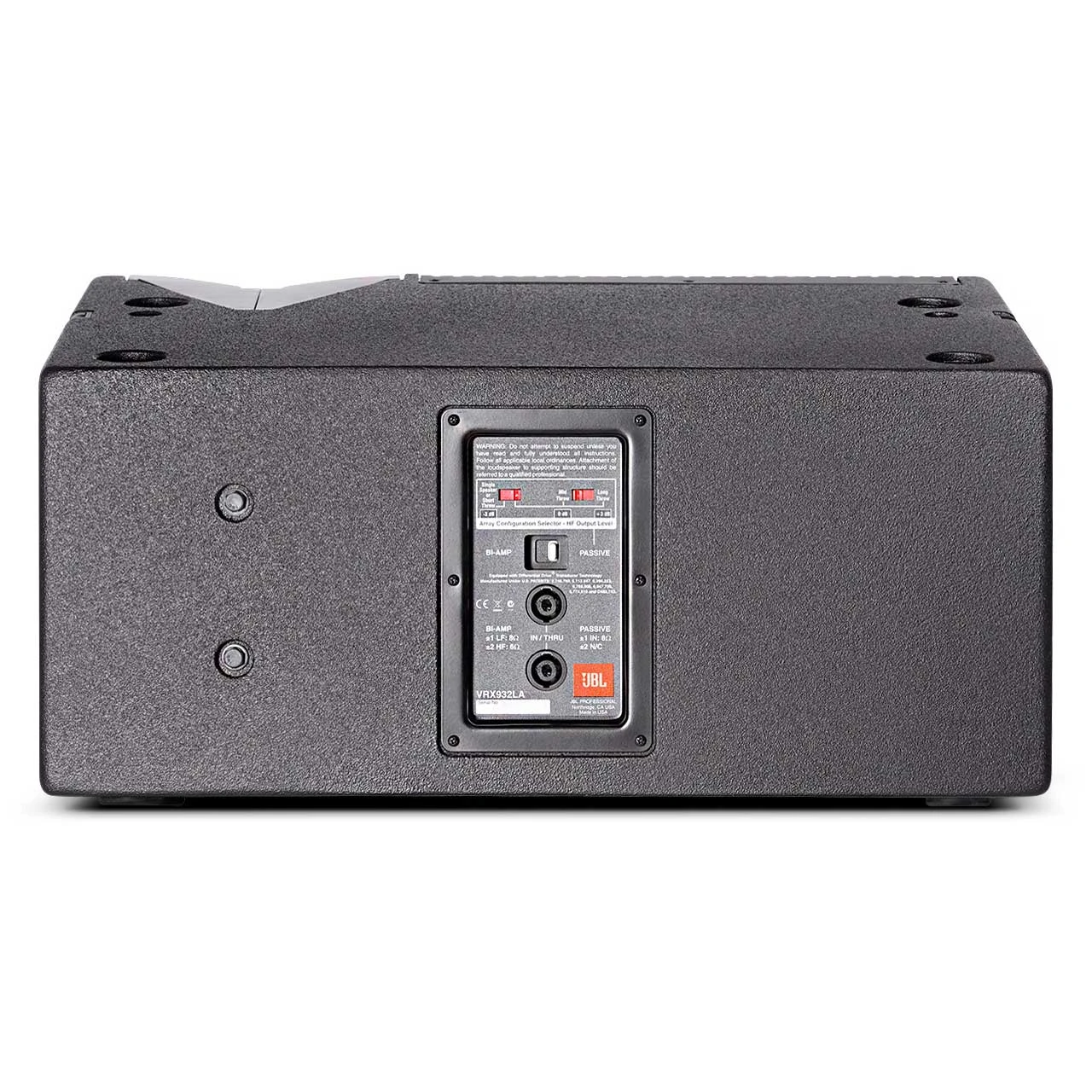

JBL VRX932LA-1 12 Inch Two-Way Line-Array System (Black)

VRX932LA-1 – Overview

• Features:

  • JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
  • VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
  • Array Configuration Selector permits “array shading” in passive mode


• Specifications:

  • Power Rating : 800 W / 1600 W / 3200 W
  • Frequency Range : 57 Hz – 20 kHz(-10 dB)
  • Dimensions(H x W x D) : 343 mm x 597 mm x 376 mm(13.5 in x 23.5 in x 14.8 in)
  • Frequency Response : 75 Hz – 20 Hz (+/-3db)
  • Coverage Pattern : 100 x 15 nominal
  • Crossover Modes : Bi-amp / passive, externally switchable
  • Crossover Frequency : 132 dB SPL peak 1.2 kHz
  • System Maximum SPL : Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
  • System Sensitivity (1w @ 1m : Passive: 95 dB SPL
  • Bi-amp LF: 95 dB SPL
  • Bi-amp HF: 114 dB SPL
  • LF Driver : 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
  • HF Driver : 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
  • Nominal Impedance : Passive: 8 ohm
  • Bi-amp LF: 8 ohm
  • Bi-amp HF: 8 ohm
  • Enclosure : 18 mm, 11-ply birch plywood
  • Suspension / Mounting : Optional VRX932LA-AF line array frame kit
  • Finish : Black DuraFlex™ finish
  • Grille : Power coated, black, 16-guage perforated steel with with acoustically transparent foam
  • Input Connectors : Neutrik® Speakon® NL-4 (x2)
  • Net Weight : 21 kg (46 lb)
  • Optional Accessories : VRX932LA-AF: Suspension array frame
  • SS2-BK: Tripod speaker stand
  • SS3-BK: Satellite speaker pole,41 in (1041 mm)
  • SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only


• GTIN:

  0050036902939
