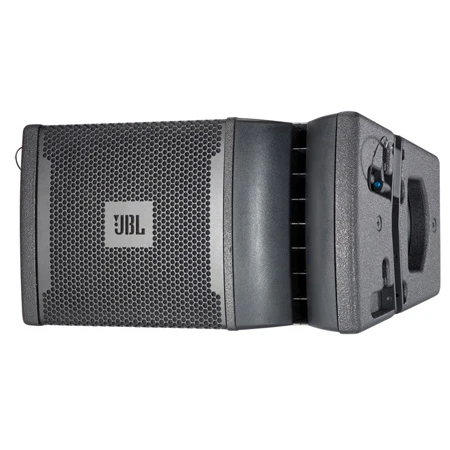

JBL VRX928LA 8 In. Two-Way Line Array Loudspeaker

VRX928LA – Overview

• Features:

  • Constant Curvature Array – The waveguide mounts three compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
  • Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
  • Suspension and Rigging.
  • Dual Angle Pole Socket – JBL’s dual angle pole sockets allow great flexibility in aiming the enclosure.
  • Differential Drive® Woofer


• Specifications:

  • Input Connectors: Neutrik® Speakon NL-4 (x2)
  • Power Rating : 400 W / 800 W / 1600W
  • Frequency Range : 57 Hz – 20 kHz(-10 dB)
  • Dimensions(H x W x D) : 230 mm x 420 mm x 270 mm
  • 9.0 in x 16.5 in x 10.5 in
  • Coverage Pattern : 100 x 15 nominal
  • Frequency Response : 75 Hz – 20 Hz (+/-3db)
  • Crossover Modes : 4 Ohms Bi-amp / passive,
  • Crossover Frequency : 132 dB SPL peak 1.2 kHz
  • Weight : 12.7 kg (28 lb)


• GTIN:

  0050036903196
