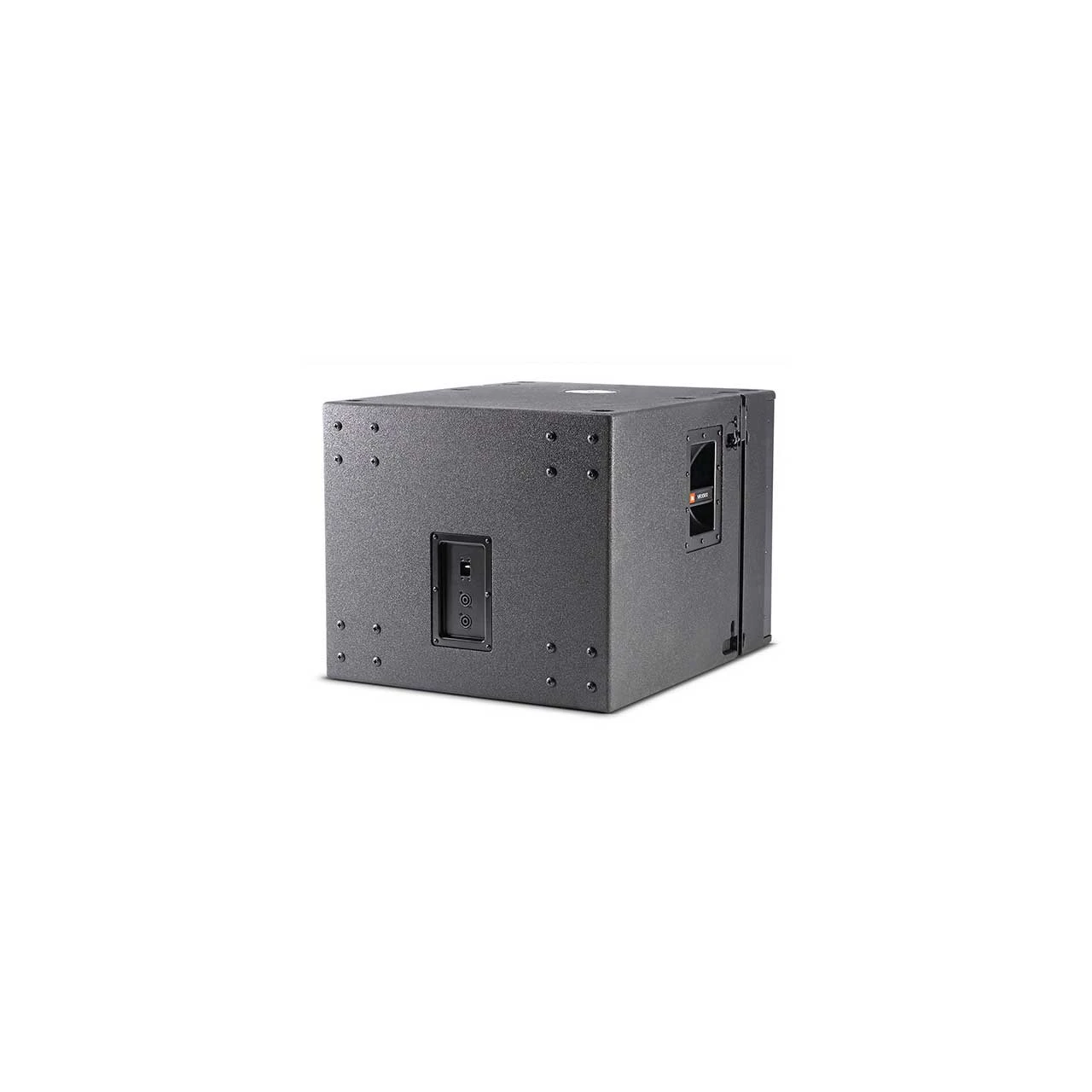

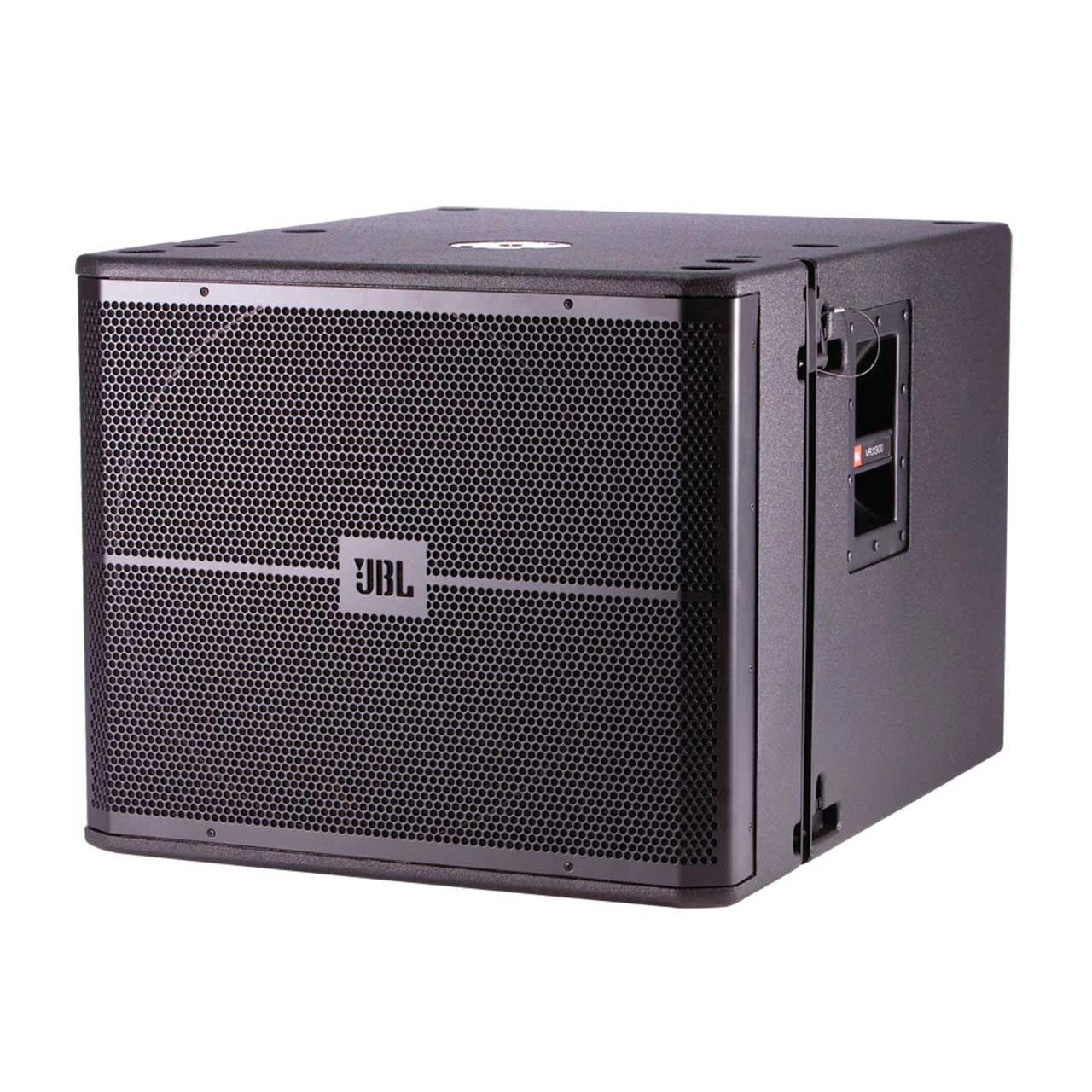

VRX918S – Overview
The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive, 18″ woofer in a front-loaded, vented enclosure.
-
Features:
- Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
- 18 inch, 2268H Differential Drive woofer for extended low-frequency output
- Large port area for reduced distortion
- 20 mm threaded pole socket for solid, secure satellite speaker mounting
-
Specifications:
- Power Rating 800 W / 1600 W / 3200 W
- Frequency Range 31 Hz – 220 Hz
- Dimensions
- (H x W x D) 508 mm x 597 mm x 749 mm
- (20.0 in x 23.5 in x 29.5 in)
- Frequency Response 34 Hz – 220 Hz
- Recommended
- Crossover Frequencies 80 Hz, 24 dB / octave HPF
- 80 Hz, 24 dB / octave LPF
- System Maximum SPL 130 dB SPL peak
- System Sensitivity 95 dB SPL
- LF Driver 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
- Nominal Impedance 8 ohms
- Active Tunings Tunings available at www.jblpro.com
- Enclosure Rectangular, 18 mm, 13-ply birch plywood
- Suspension / Mounting Optional VRX932LA-AF line array frame kit or 10mm eyebolt
- Finish Black DuraFlex finish
- Grille Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
- Input Connectors Neutrik Speakon NL-4 (x2)
- Net Weight 37 kg (81 lb)
- Optional Accessories SRX718S-CVR: Pull-over padded cover
- SS4-BK: Adjustable, heavy-duty pole, M20 thread to 35 mm
- WK-4: Caster kit
- VRX-AF: Array Frame Kit
-
GTIN:
0050036903226
