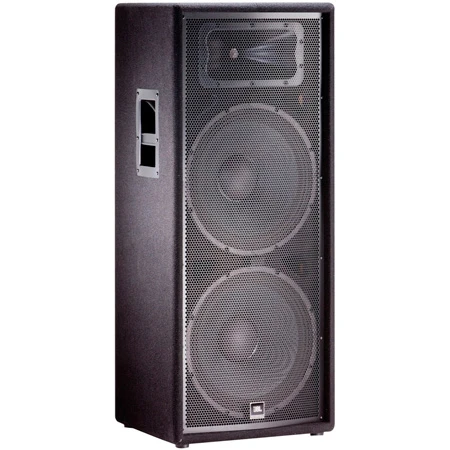

JBL JRX225 Dual 15 Inch Two-Way Sound Reinforcement Loudspeaker System

JRX225 – Overview

• Features:

  • Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard protects the highfrequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage.


• Specifications:

  • Power Rating : 500 W / 2000 W
  • Frequency Range (-10 dB) : 42 Hz – 18 kHz
  • Frequency Response (±3 dB) : 62 Hz – 13 kHz
  • Sensitivity (1w/1m) : 100 dB SPL
  • Nominal Impedance : 4 ohms
  • Recommended Amplifier Power : 500 W to 1000 W into 4 ohms
  • Maximum SPL : 133 dB
  • Nominal Dispersion : 90§ x 50§
  • Crossover Frequency : 2.2 kHz
  • Dimensions
  • (H x W x D) : 1092 mm x 464 mm x 432 mm
  • (43 in x 18.3 in x 17 in)
  • Weight : 42.6 kg (94 lb)
  • High Frequency Driver : JBL 2414H-C , 1″ exit compression driver mounted on Progressive TransitionT Waveguide
  • Low Frequency Driver : JBL M115-8A x 2
  • Input Connectors : Neutrik Speakon NL-4 (x1); .25 in TS phone jack (x1); parallel
  • Grille : 18-gauge, powder-coated steel


• GTIN:

  0050036904513
