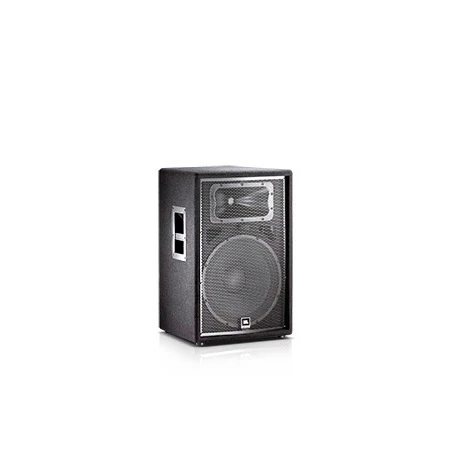

JBL JRX215 15-Inch 2-Way Sound Reinforcement Loudspeaker – Each

JRX215 – Overview

• Features:

  • JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard protects the high frequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.


• Specifications:

  • Power Rating : 250 W / 1000W
  • Frequency Range (-10 dB) : 41 Hz – 18 kHz
  • Frequency Response (±3 dB) : 59 Hz – 13 kHz
  • Sensitivity (1w/1m) : 99 dB SPL
  • Nominal Impedance : 8 ohms
  • Recommended Amplifier Power : 250 W to 500 W into 8 ohms
  • Maximum SPL : 129 dB
  • Nominal Dispersion : 90§ x 50§
  • Crossover Frequency : 2.2 kHz
  • Dimensions
  • (H x W x D) : 699 mm x 460 mm x 432 mm
  • (27.5 in x 18.1 in x 17 in)
  • Weight : 27.4 kg (60.5 lb)
  • High Frequency Driver : JBL 2414H-C , 1″ exit compression driver mounted on Progressive TransitionT Waveguide
  • Low Frequency Driver : JBL M115-8A
  • Input Connectors : Parallel Neutrikr Speakon NL-4 (x1); .25in TS phone jack (x1)
  • Grille : 18-gauge, powder-coated steel
  • Mounting & Suspension : 36 mm, dual-angle pole-mount socket


• GTIN:

  0050036904506
