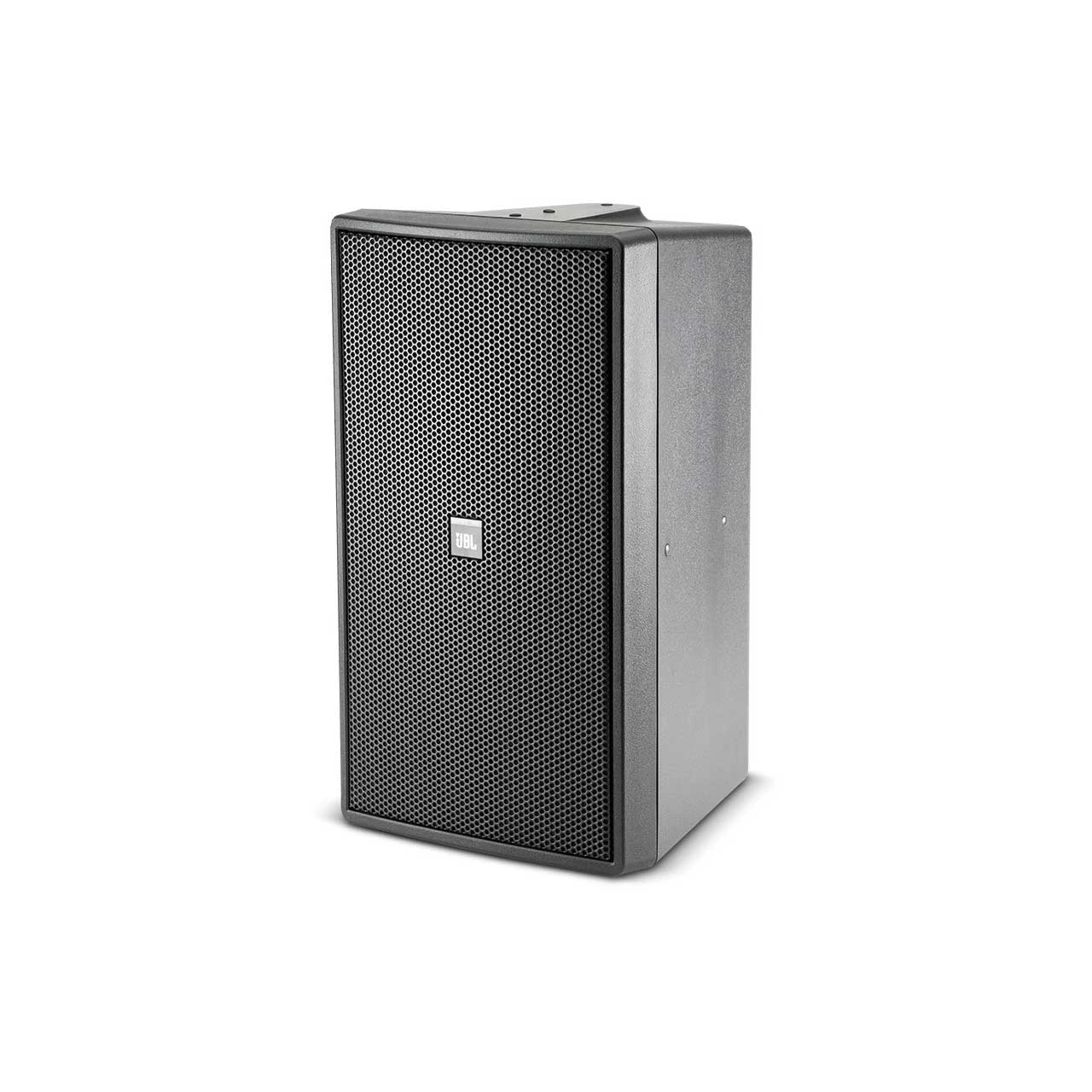

JBL Control 29AV-1 Speaker (Each) - Black

JBL Control 29AV-1 Speaker (Each) - Black - Image 2

JBL Control 29AV-1 Speaker (Each) - Black - Image 3

JBL Control 29AV-1 Speaker (Each) – Black

Original price was: $335.00.Current price is: $98.99.

SKU: BWFYA 52530294 Categories: Ceiling & Wall Mount Speakers, Professional

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

CONTROL 29AV-1 – Overview

The JBL Control 29AV-1 is a Premium Indoor/Outdoor Monitor Speaker with extended bandwidth and extremly smooth frequency response. Built tough the CTL29AV is compact and rugged with molded high impact polystyrene shells. Designed for wide-ranging indoor and outdoor applications, the Control Contractor Series offers versatility, ease-of-installation and paint-ability. You get 110 degree by 85 HF coverage with the rotateable horn, a 200mm (8 inch) Kevlar cone woofer and a 25mm (1 inch) titanium compression driver. JBL’s Invisi-ball mounting technology revolutionizes ease-of-installation with built-in hardware easily secured with a standard hex wrench from a front channel. Mounting bracket is included.

The Control 29AV-1 utilizes high power components,computer optimized horn and cabinet design, and complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker.

Features:
- Extended bandwidth, extremely smooth frequency response
- 110° x 85° HF coverage, rotatable horn
- 110W transformer for 70V or 100V lines, with 8Ω thru
- SonicGuard™ overload protection
- 8″ Kevlar cone woofer, 1″ titanium diaphragm compression driver
- Includes InvisiBall™ mounting hardware, plus ten 6mm attachment points for suspension and optional U-bracket
- Sealed input panel cover and screwdown input terminals
Specifications:
- Frequency Range: 37Hz – 18kHz (-10dB)
- Power Capacity: 300W Continuous Program Power; 150W Continuous Pink Noise
- Transformer Taps: 70V: 110W, 55W, 28W & 14W; 100V: 110W, 55W & 28W, Thru Position: 8Ω nominal
- Frequency Response: 45Hz – 18kHz (±3dB)
- Maximum SPL @ 1m: Short-Term: 120dB; Long-Term: 114dB
- Nominal Sensitivity: 90dB (2.83V/1m)
- Nominal Coverage Angle: 110° H x 85° V, rotatable
- Directivity Factor (Q): 7.2dB, averaged 500Hz – 16kHz
- Directivity Index (DI): 8.6dB, averaged 500Hz – 16kHz
- Nominal Impedance: 8Ω
- Minimum Impedance: 6.3Ω @ 230Hz
- Crossover Network: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5kHz crossover frequency
- Low Frequency: 8″ kevlar cone with pure butyl rubber surround, 2″ voicecoil on fiberglass former
- High Frequency: 1″ compression driver, pure titanium diaphragm with patented JBL diamond surround
- Enclosure Material: High impact polystyrene
- Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
- Overload Protection: Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.
- Environmental: IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
- Terminations: Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2).
- Safety Agency Rating: Transformer is listed per UL1876
- Colors: Black or White (-WH)

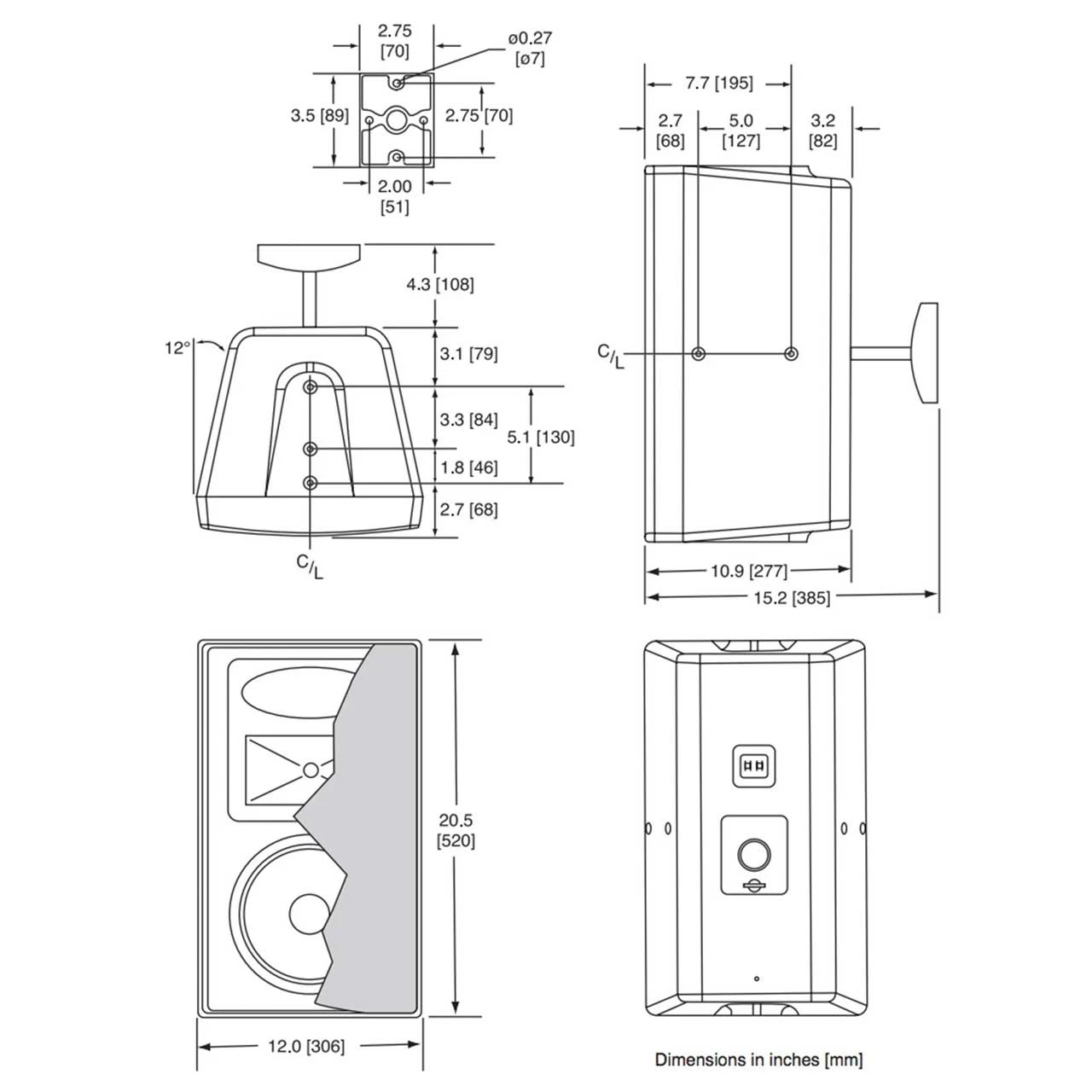

- Dimensions (HxWxD): 20.5″ x 12.0″ x 10.9″
- Net Weight (ea): 26.8lbs
- Shipping Weight (ea): 30.8lbs
Item Includes:
- 1 pc MTC-PC2 input panel cover
- InvisiBall mounting base
- 6mm x 260mm InvisiBall Hex wrench
GTIN:

0050036903387
