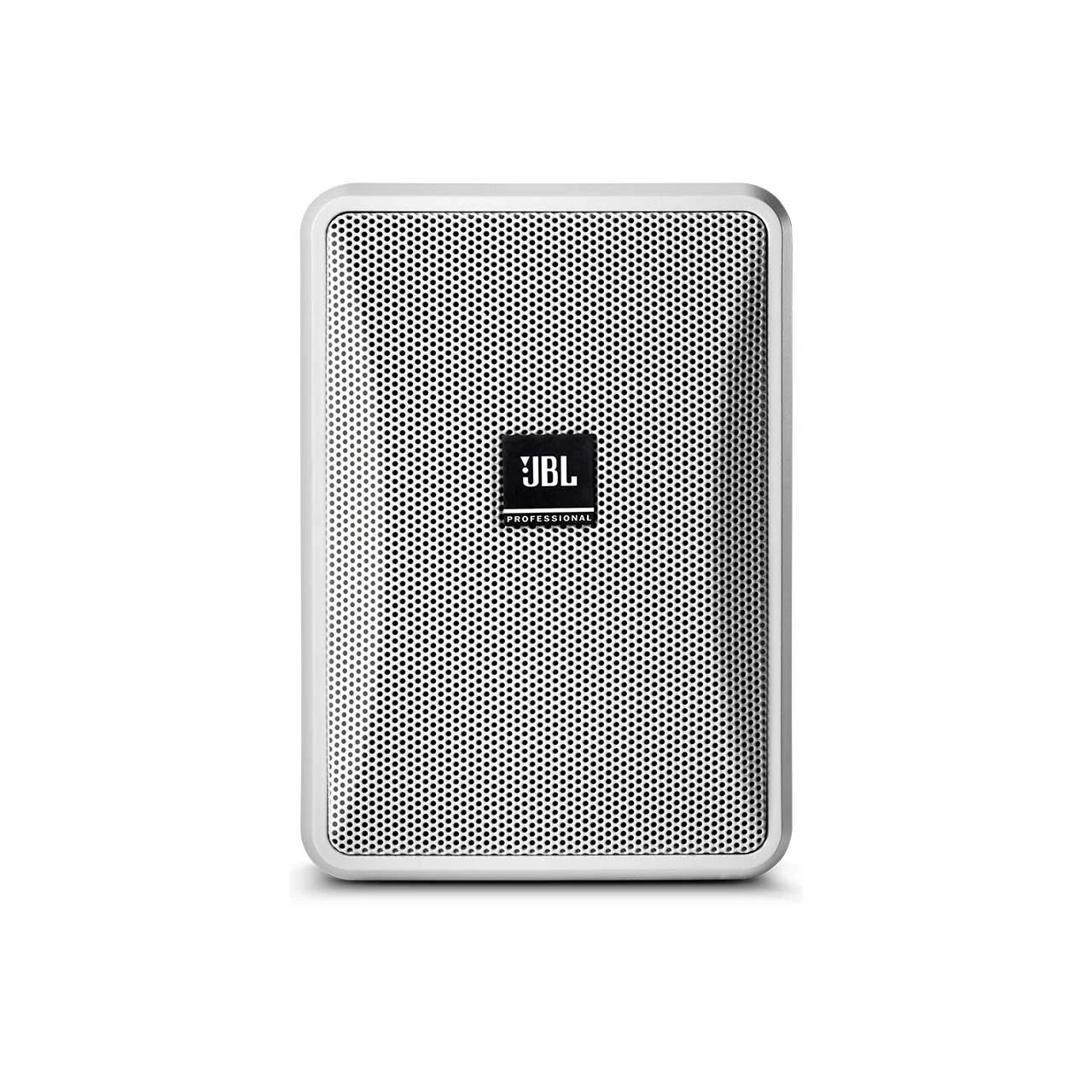

JBL Control 23-1 WH Ultra-Compact Indoor/Outdoor Background/Foreground Speaker (Pair) – White

CONTROL 23-1 WH – Overview

• Features:

  • Components
  • 3″ woofer with woven fiberglass cone
  • 1/2″ PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall mounting hardware (optional U-bracket available)
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
  • High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.


• Specifications:

  • Power Rating
  • 100W Continuous Program (2 hrs)
  • 50 W (200W peak), Continuous Pink Noise (2 hrs)
  • 40 W (160W peak) Continuous Pink Noise (100 hrs)
  • Frequency Range (-10 dB): 70 Hz to 20 kHz
  • Frequency Response (+/-3 dB): 95 Hz – 19 kHz
  • Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
  • Maximum SPL: 103 dB ave. Continuous Pink Noise (109 dB peak)
  • Sensitivity: 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle: 100° x 100°
  • Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz)
  • Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz)
  • Nominal Impedance: 8 ohms (THRU setting)
  • Crossover Type: 2nd order low-pass, 2nd order high-pass
  • Transformer Taps
  • 70V: 15W, 7.5W, 3.7W, 1.8W
  • 100V: 15W, 7.5W, 3.7W
  • Insertion Loss 0.43 dB at any tap setting
  • Thru Setting: 8Ω nominal
  • Recommended Protective High-Pass: 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
  • Low Frequency Driver: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
  • High Frequency Driver: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton voice coil former.
  • Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
  • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing.
  • Installation: InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
  • Environmental: IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax grille for breaking up driving rain and for especially difficult environments.

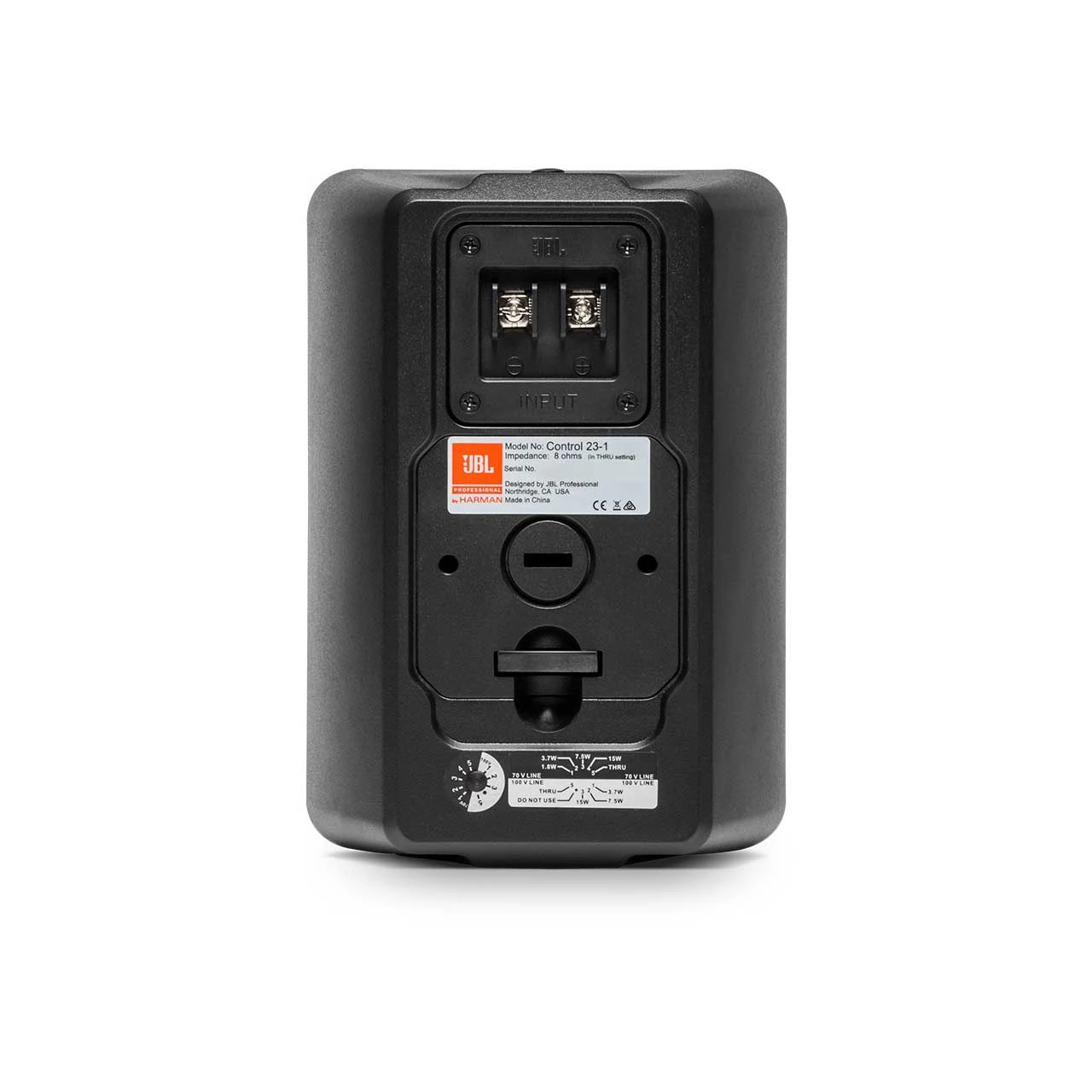

  • Termination: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
  • Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876
  • Colors: Black (RAL9004) or white (-WH, RAL9016)
  • Dimensions (H x W x D): 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket.
  • Net Weight: 1.8 kg (4.0 lbs)


• Item Includes:

  • 2x Control 23-1 WH Speakers
  • InvisiBall wall-mounting system
  • 4 mm x 80 mm hex key


• GTIN:

  0691991002014
