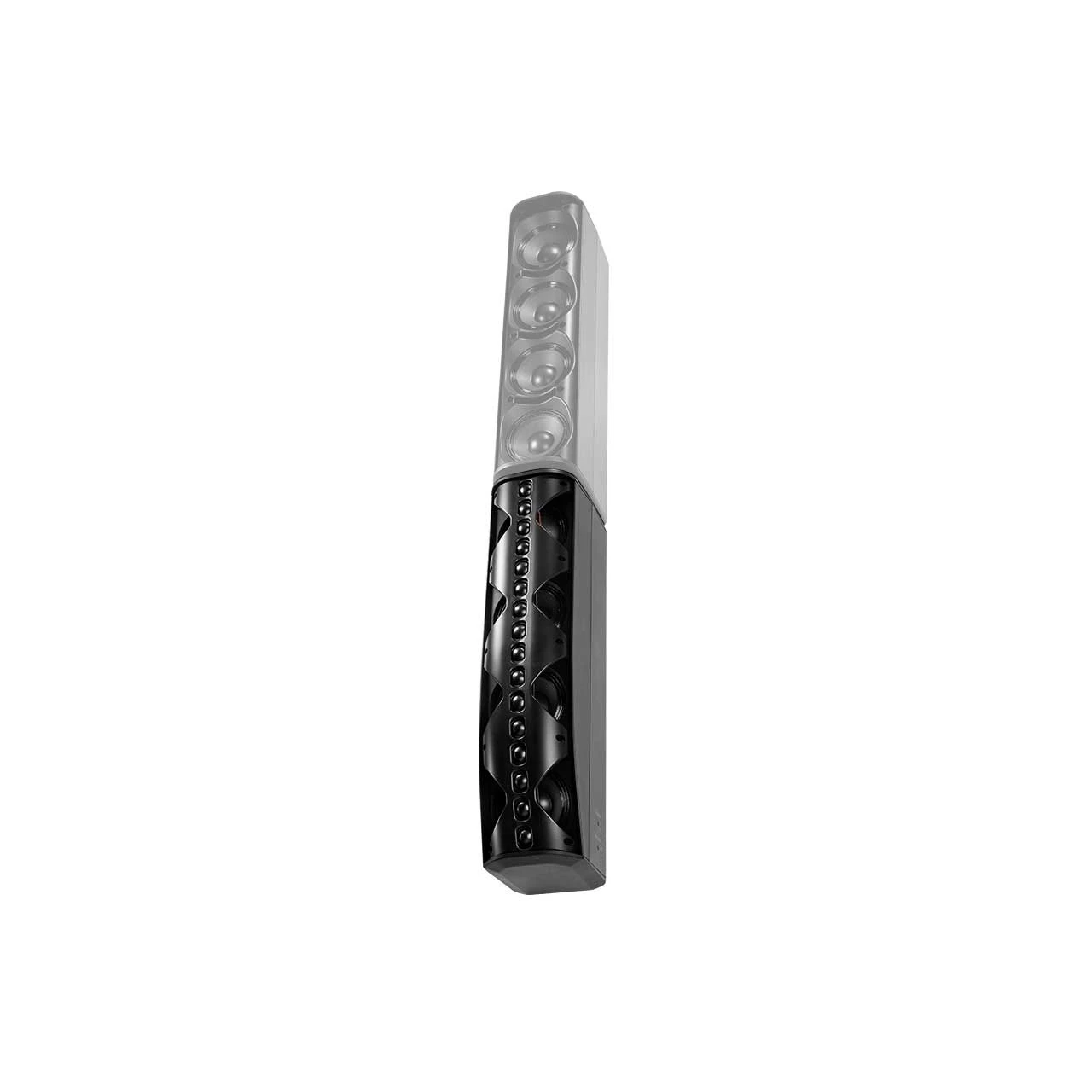

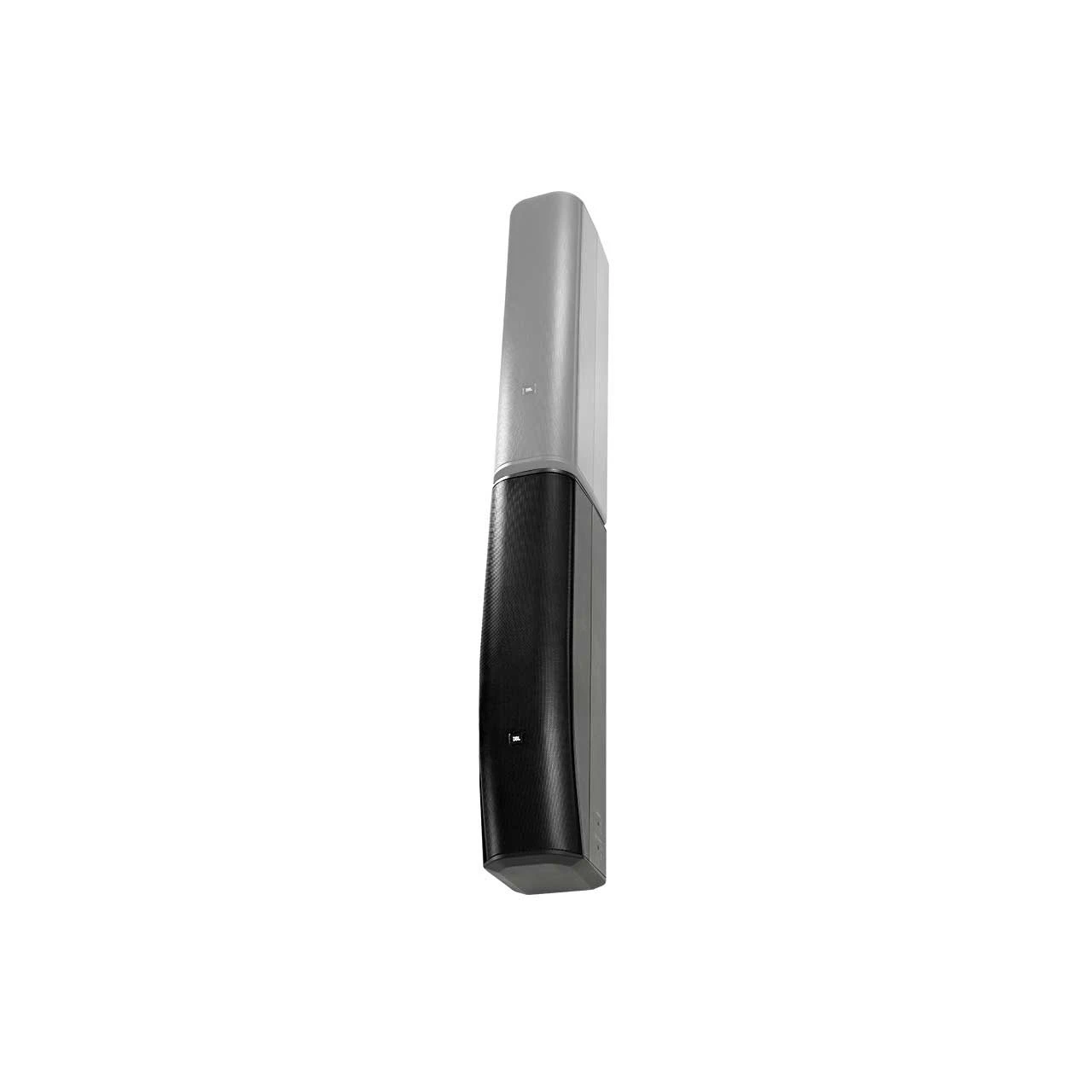

JBL CBT 70J Constant Beamwidth Technology Line Array Column Loudspeaker (Black)
Original price was: $320.00.$99.99Current price is: $99.99.
- Where quality meets convenience.
- Control the delivery date and try to deliver it in the fastest time
- Protect Your Wallet with Safe Payments
- Quality products, fair prices.
CBT 70J – Overview
The J-shape of the array works in conjunction with the Constant Beamwidth Technology circuitry to provide asymmetrical coverage similar to that of expensive line arrays commonly used in concert systems. The J column sends highly concentrated sound toward the back of the venue, while down-filling a broader, less concentrated sound to the front of the venue. This results in more consistent sound levels from front to back. 70 cm J-shaped coaxial line array with 16 x 1″ tweeters, 4 x 5″ woofers plus patent-pending Constant Beamwidth Technology™ circuitry. Perfect for A/V, Small Performance Auditoriums, Classrooms, Lecture Halls. For Outdoor Applications: Pole-Mounted at School Stadiums, Racetracks, Theme Parks, Fill Applications.
-
Specifications:
- Frequency Response (-10 dB): 60 Hz – 20 kHz
- Sensitivity (SPL @ 1m, 3.3 ft): 100 dB
- Power Handling (low – Z): 500 W
- Max SPL: 127 dB (133 dB peak)
- Pattern Control Frequency (± 20°): 800 Hz
- Mounting: 10 x M6 insert points, wall bracket included
- Dimensions (H x W x D): 27.4″ x 6.6″ x 9.3″
- Vertical Coverage: Narrow = 25° asymmetrical Broad = 45° asymmetrical
- Equalization: Music (flat)/Speech
- Tap Settings: 8 ohms
-
GTIN:
0050036904216
