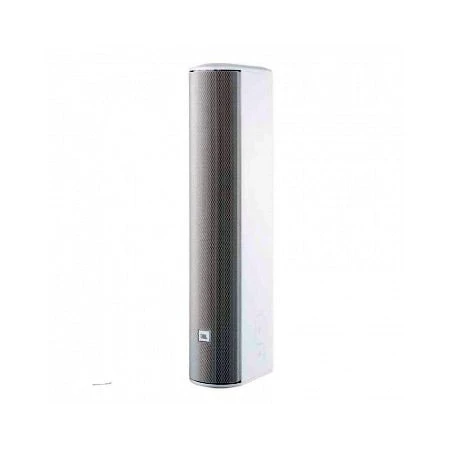

CBT 50LA-1-WH – Overview
The CBT 50LA-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.
-
Features:
- Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Dynamic SonicGuard overload protection
- Built-in 70V/100V transformer, plus 8 ohm direct capability.
- Swivel (pan) / tilt wall bracket included.
-
Specifications:
- Components Eight 50 mm
- (2 in) Full-Range
- Frequency Range (-10 dB) 80 Hz – 20 kHz
- Coverage Pattern Vertical 20° (1.5 kHz – 16 kHz, ±10°)
- Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
- Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz – 14 kHz)
- 89 dB (music mode, 300 Hz – 18 kHz)
- Nominal Impedance 8 ohms
- Power Capacity
- (8 ohm setting) 150W (600W peak), 2 hrs
- 100 W (400W peak), 100 hrs
- Max SPL Speech mode: 115 dB cont ave (121 peak)
- Music mode: 111 dB cont ave (117 peak)
- 70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 😯 thru, via switch
- Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
- Outdoor Capability IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
- Colors Black or White (-WH)
- Insert Points Ten M6 insert points on back panel.
- Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMountr 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
- Dimensions (H x W x D) 528 x 99 x 153 mm
- (20.8 x 3.9 x 6.0 in)
- Net Weight 4.1 kg (9.0 lb)
-
Item Includes:
- Constant Beamwidth Technology Line Array Loudspeaker – White -Each
- Swivel (pan) / tilt wall bracket
-
GTIN:
0050036904261
