CBT-50LA-1-WH – Overview
IP-55 rated Indoor/Outdoor Loudspeaker with Dynamic SonicGuard™ overload protection
The JBL CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.
The CBT 50LA-1 can be installed either indoors or outdoors. The drivers are weather treated, the fiberglass reinforced ABS cabinet with UV resistant paint is excellent for outdoor applications, external screws are stainless steel, and the painted aluminum grill resists rusting in the harshest conditions.
The CBT 50LA-1 combines superb sound quality, excellent pattern control, and it’s designed to fit your enviornment. The slim, compact design blends well into virtually any architectural decor! It’s only 20.8 inches (53 cm) tall by 3.9 Inches (10 cm) wide and that makes the CBT 50LA-1 ideal for a wide variety of applications. It’s perfect for retail stores, concourses, transit spaces, fill applications, conference rooms, architectural spaces, audio for video, lecture halls, and more!
-
Features:
- Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
- Dynamic SonicGuard™ overload protection
- Built-in 70V/100V transformer, plus 8 ohm direct capability.
- Swivel (pan) / tilt wall bracket included.
-
Specifications:
- Components: Eight 50 mm (2 in) Full-Range
- Frequency Range (-10 dB): 80 Hz – 20 kHz
- Coverage Pattern: Vertical 20° (1.5 kHz – 16 kHz, ±10°) – Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
- Sensitivity (2.83V@ 1m)1: 93 dB (speech mode, 2 kHz – 14 kHz) – 89 dB (music mode, 300 Hz – 18 kHz)
- Nominal Impedance: 8 ohms
- Power Capacity (8 ohm setting): 150W (600W peak), 2 hrs – 100 W (400W peak), 100 hrs
- Max SPL3: Speech mode: 115 dB cont ave (121 peak) – Music mode: 111 dB cont ave (117 peak)

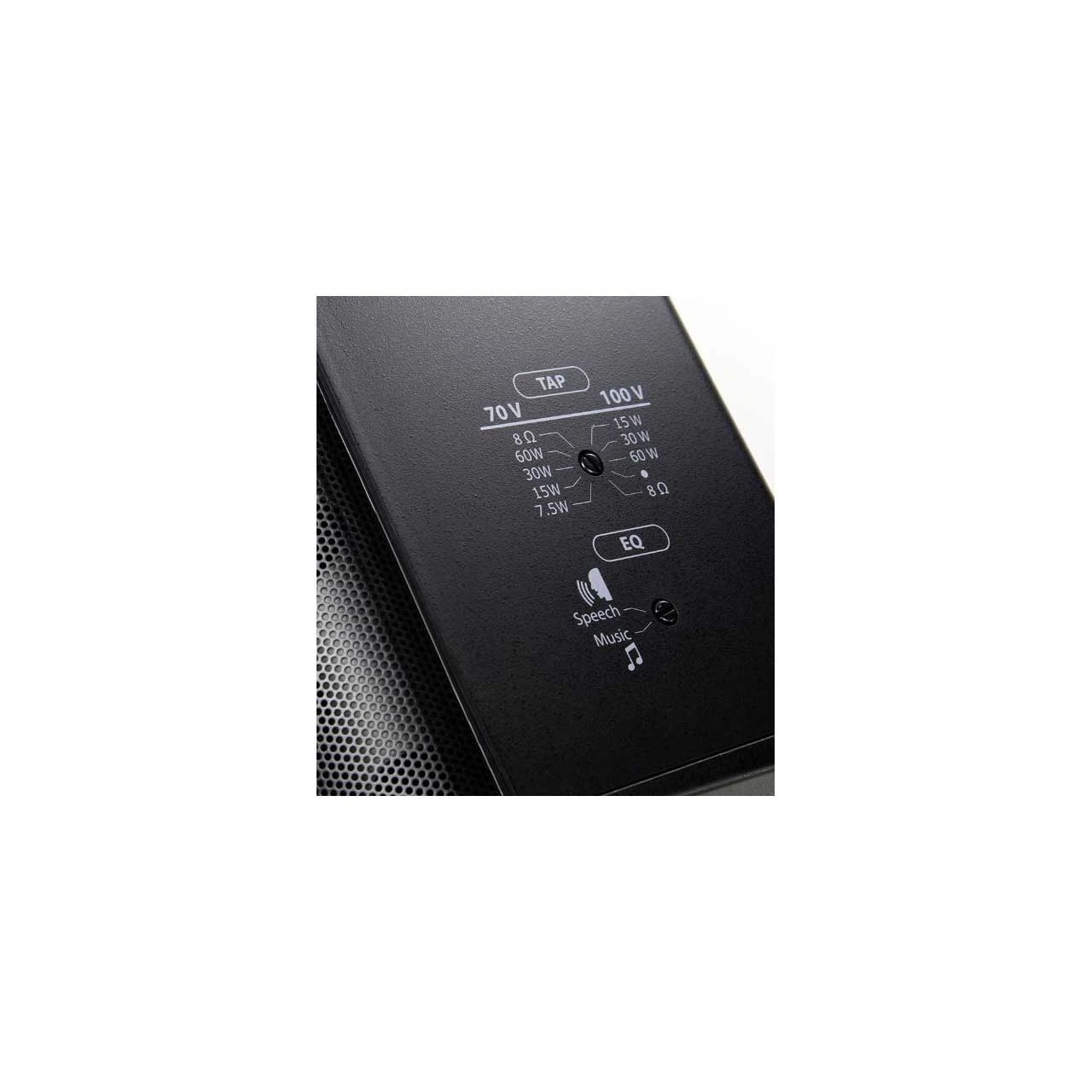

- 70V/100V Transformer Taps: 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
- Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grill
- Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
- Colors: Black or White (-WH)

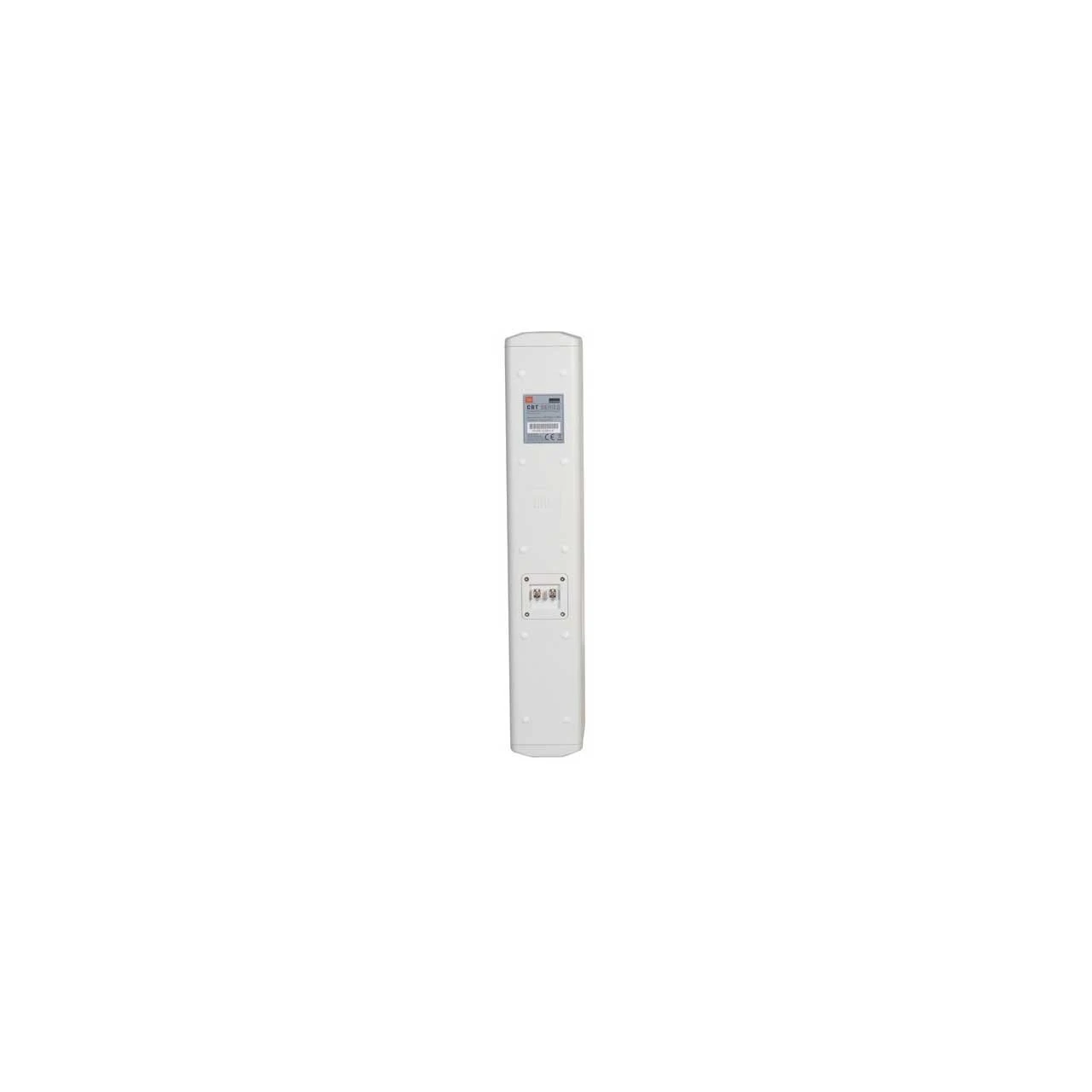

- Insert Points: Ten M6 swivel (pan)/tilt insert points on back panel.
- Dimensions (H x W x D): 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)
- Net Weight: 4.1 kg (9.0 lb)
- Mounting: Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt — see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
-
Item Includes:
- 1x CBT-50LA-1 Line Array Column – White
- 1x Tilt wall bracket
- 1x Swivel (pan)
-
GTIN:
0050036904261
