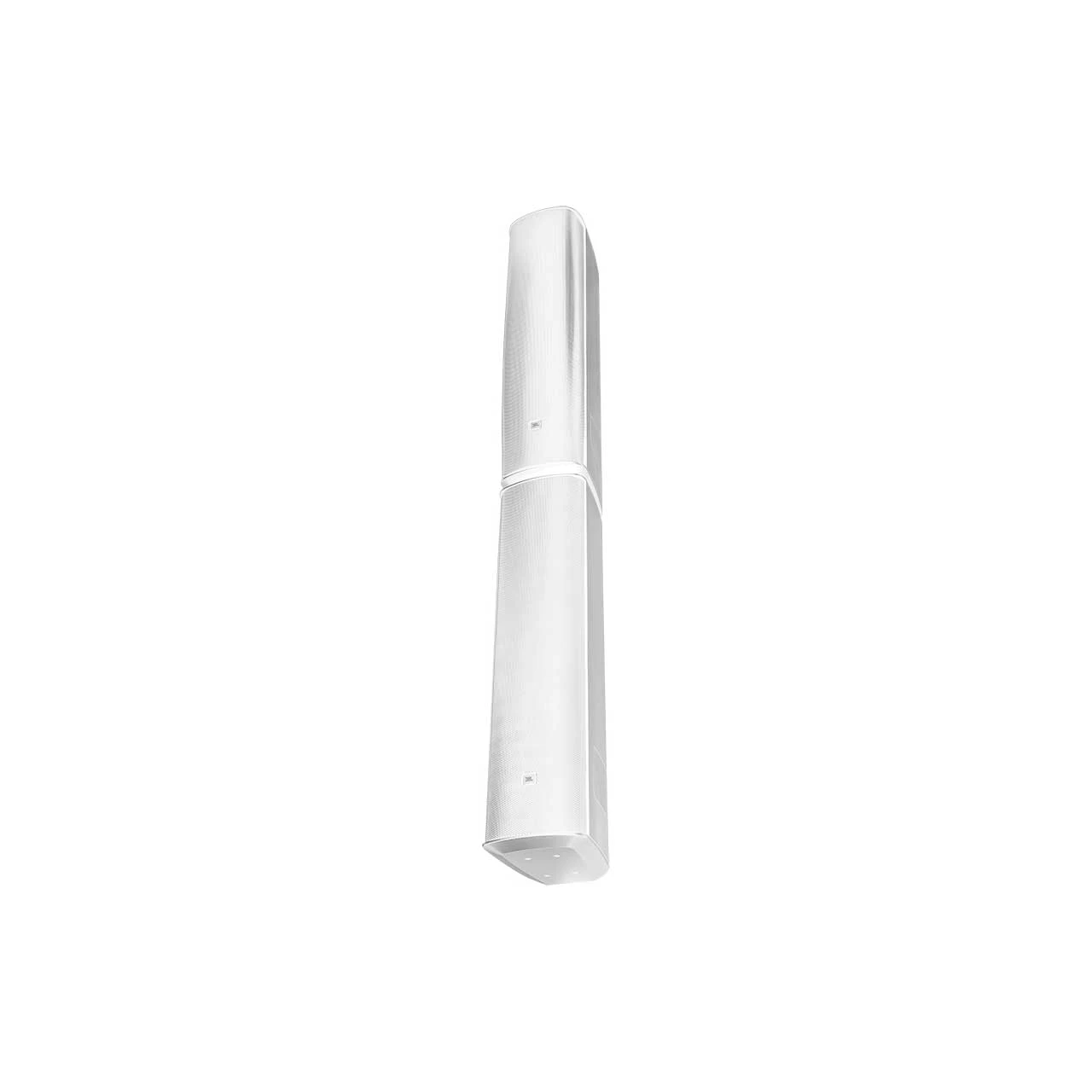

JBL CBT 1000E-WH High Output Column Extension Speaker For CBT-1000 - White

JBL CBT 1000E-WH High Output Column Extension Speaker For CBT-1000 - White - Image 2

JBL CBT 1000E-WH High Output Column Extension Speaker For CBT-1000 – White

Original price was: $334.00.Current price is: $95.99.

SKU: BWFYA 38944016 Categories: PA Speakers, Sale

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

CBT 1000E-WH – Overview

The white CBT 1000E Extension Loudspeaker from JBL features six 6.5″ low-frequency drivers and a purpose-designed crossover network for use in the CBT 1000 + 1000E system. The drivers feature neodymium magnet motors with 2″ diameter voice coils providing maximum flux in a compact package. The magnetic structure is magnetically shielded and the copper pole tips reduce flux modulation and minimize distortion. The 0.62″ long coil provides linear drive and high power handling of 1500W in a compact driver.

Each driver features damped blended surrounds and coated sealed paper cones. They are coated with diaphragm materials to provide moisture, UV, and salt resistance for outdoor capability. This extension speaker comes in a tough fiberglass reinforced ABS cabinet. Its thick heavy-duty aluminum grille allows for rust-free installation outdoors. A coupler plate is included for combining this extension speaker with the CBT 1000 array speaker (not included).

Features:
- Six 6.5″ high-excursion LF drivers
- 1500W RMS power handling
- Built-in purpose-designed crossover network for combining with CBT 1000 array speaker

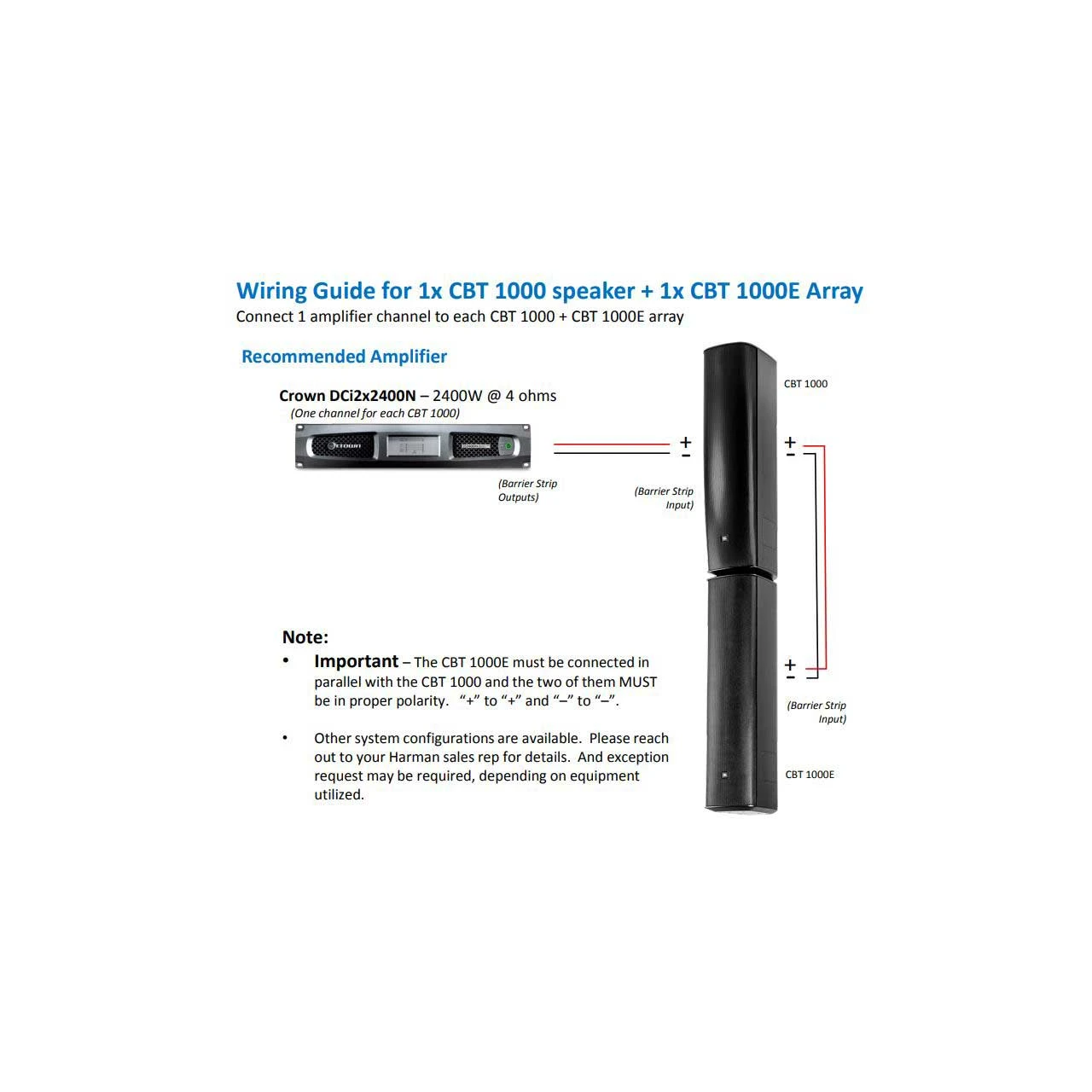

- Coupler plate is included for joining this speaker unit with the array speaker
- Doubles power handling of the array speaker and extends pattern control
Specifications:
- Active or Passive: Passive
- Frequency Response: 38 Hz to 650 kHz at -10 dB
- Power Capacity: 1500 W (6000 W peak), 2 hours 1000 W (4000 W peak), 100 hours
- Maximum Sound Pressure Level (SPL): 124 dB full space, 130 dB half-space (65 to 300 Hz)
- Nominal Sensitivity: 2.83 V at 3.3′
- Impedance: Nominal: 8 Ohms
- Low Frequency Driver: 6 x 6.5″ (165 mm) driver
- Maximum Input Voltage: 100 V RMS (2 hours)
- Enclosure Material: Fiberglass reinforced ABS cabinet, powder-coated 1050 aluminum grille
- Finish: White (RAL9016)
- Dimensions: 9.9 x 40.2 x 11.6″ (25 x 102 x 29 cm)
- Weight: 44 lb (20 kg)
Warranty:
- 5 Year Warranty
GTIN:

0691991005718
