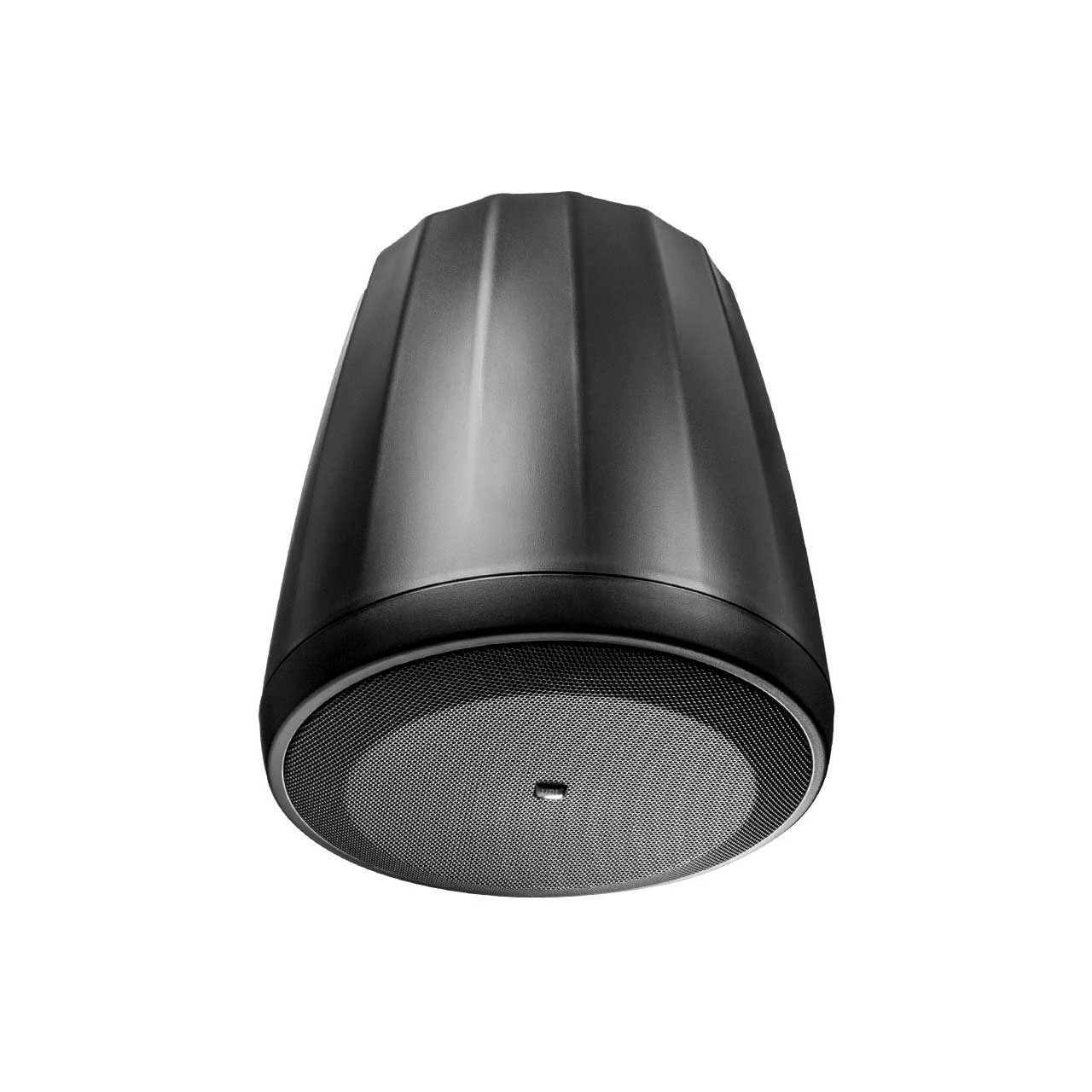

JBL C64P/T Compact Full-Range Pendant Speaker – Black – Pair

C64P/T – Overview

• Features:

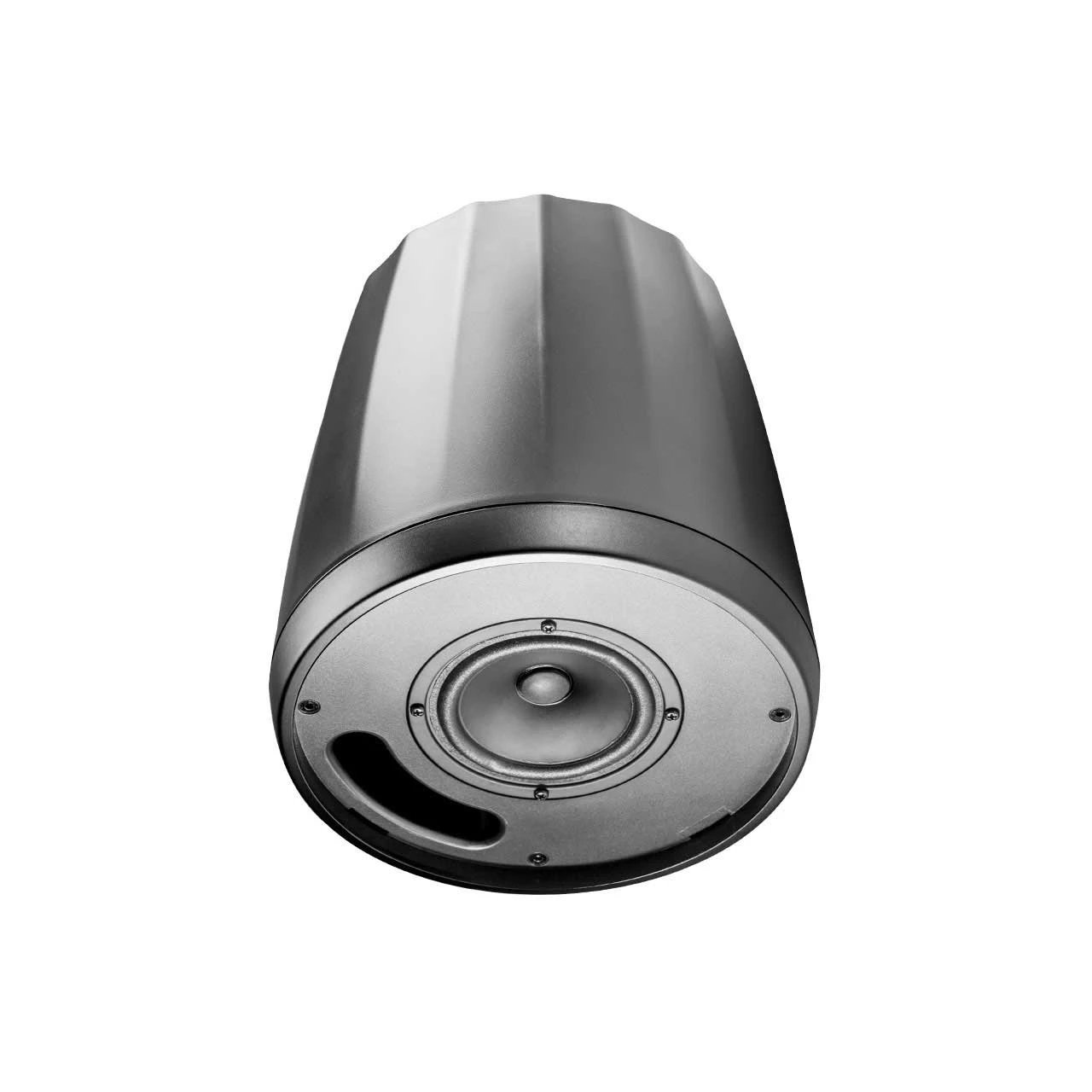

  • 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp
  • Stylish design, available in black or white (-WH)
  • UL listed (speaker and hanging cable system)
  • 8Ω and 70V/100V operation


• Specifications:

  • Frequency Response (-10 dB): 65 Hz – 15 kHz
  • Frequency Response (+/-3 dB): 85Hz – 14 kHz
  • Power Rating: 100 W Continuous Program (2 hrs); 50 W (200W peak), Continuous Pink Noise (2 hrs); 40 W (160W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage: 18.2 V RMS (2 hrs), 36.4 V peak
  • Nominal Sensitivity: 88 dB Nominal
  • Coverage Angle: 120° (averaged 1 kHz to 4 kHz)
  • Directivity (Q): 6.2
  • Directivity Index (DI): 7.3dB (averaged 1kHz – 16kHz)
  • Rated Maximum SPL @ 1m: 105 dB continuous pink noise, 111 dB peak
  • Rated Impedance: 8Ω
  • Transformer Taps: 70V: 30W, 15W, 7.5W & 3.7W 100V: 30W, 15W, 7.5W
  • Transformer Insertion Loss: 0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
  • Driver: 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
  • Enclosure Material: High impact polystyrene

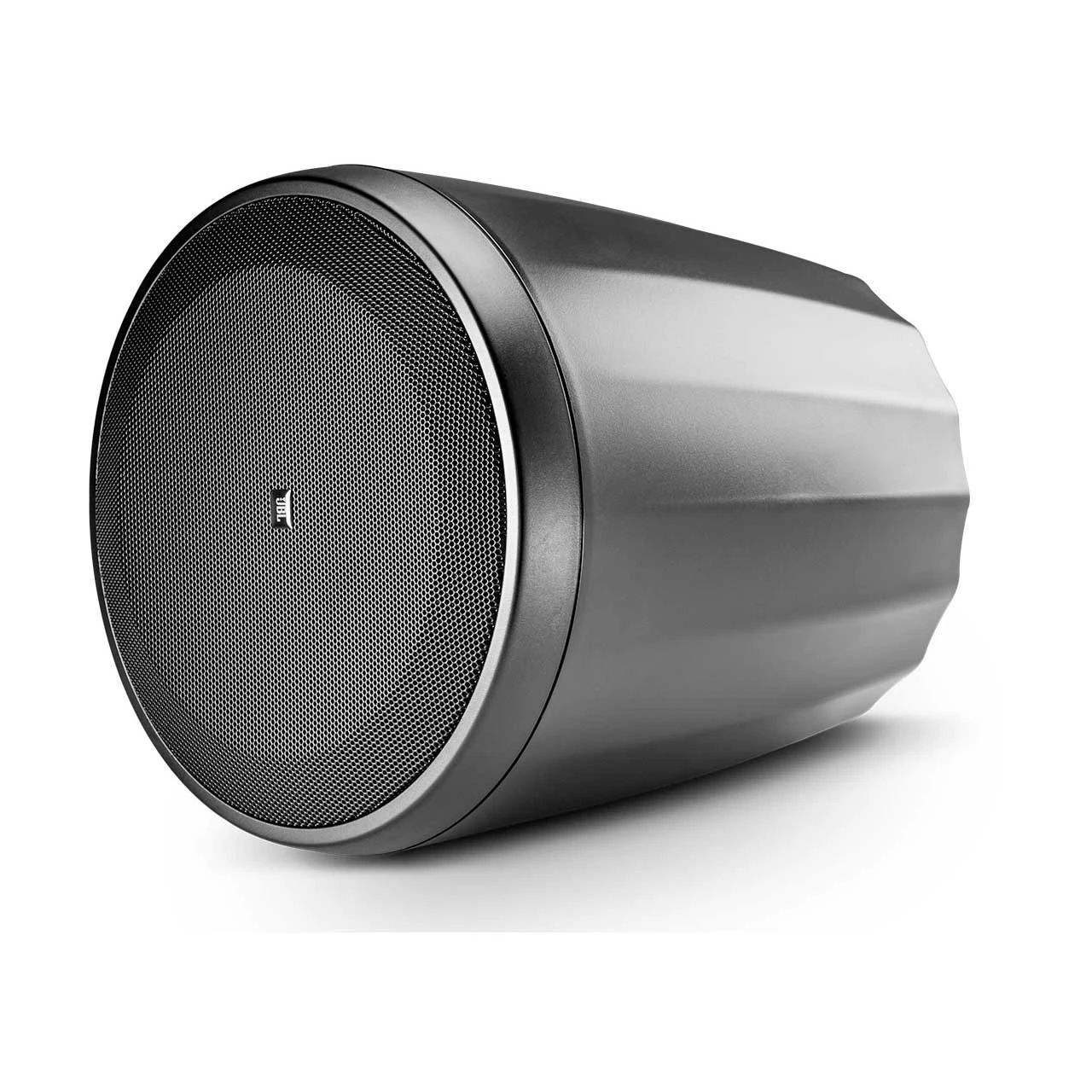

  • Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
  • Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.
  • Termination: Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
  • Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb)
  • Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
  • Dimensions (L x W x H): 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
  • Net Weight (ea): 2.35 kg (5.2 lbs)
  • Shipping Weight (pair): 6.07 kg (13.4 lbs)


• GTIN:

  0691991004230
