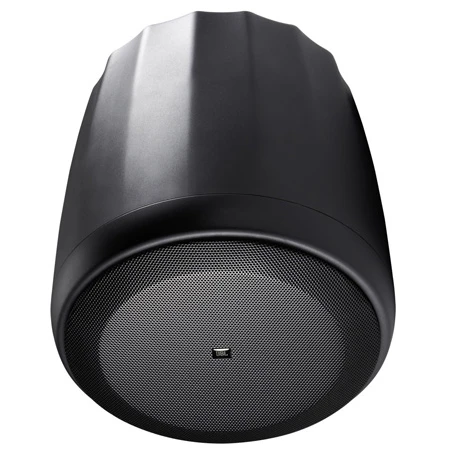

JBL C60PS/T 150 Watt Direct Radiating Pendant Subwoofer – Pair

Original price was: $347.00.Current price is: $95.99.

SKU: BWFYA 64827391 Categories: Sale, Subwoofers

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

JBL-C60PST – Overview

The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.

The Control 60PS/T may be driven by itself (or with other subwoofers) on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The included passive crossover also provides highpassed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a fullrange, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. Using the built-in passive crossover is best suited for satellite speakers with sensitivities in the 82 dB to 86 dB (2.83V @ 1m) range, resulting in a well-balanced overall frequency response.

A 100 Watt multi-tap, wide-bandwidth, lowsaturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system or as a direct low-impedance 8 Ohm speaker. If satellite speakers are used on the 70V/100V settings, the satellite speakers should be low-impedance (8 to 16 Ohm each).

A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. Rubber boot covers for each locking connector protect the terminals and the optional MTC-PC60 full-top cover accessory adds additional terminal protection for when using outdoors.

Features:
- High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
- 200 mm (8 in) long-excursion driver.
- 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
- Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
- Stylish design, available in black or white (-WH).
- UL listed (speaker and hanging cable system).
Specifications:
- Frequency Range (-10 dB): 42 Hz – 350 Hz
- Frequency Response (± 3 dB): 55 Hz – 125 Hz
- Power Capacity: 300 Watts Continuous Program Power, 100 hrs; 150 Watts Continuous Pink Noise, 100 hrs
- Nominal Sensitivity (2.83V/1m): 88 dB
- Rated Maximum SPL: 107 dB @ 1 m (3.3 ft) average, 113 dB peak
- Rated Impedance: 8 ohms
- Transformer Taps: 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
- Transformer Insertion Loss: 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
- Standalone Hookup: Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
- Subwoofer-Satellite Hookup: For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16)
- Transducer 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
- Enclosure Material: High impact polystyrene
- Grille: Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
- Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating
- Termination: Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
- Suspension: Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
- Safety Agency: Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
- Dimensions: 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
