C211 – Overview

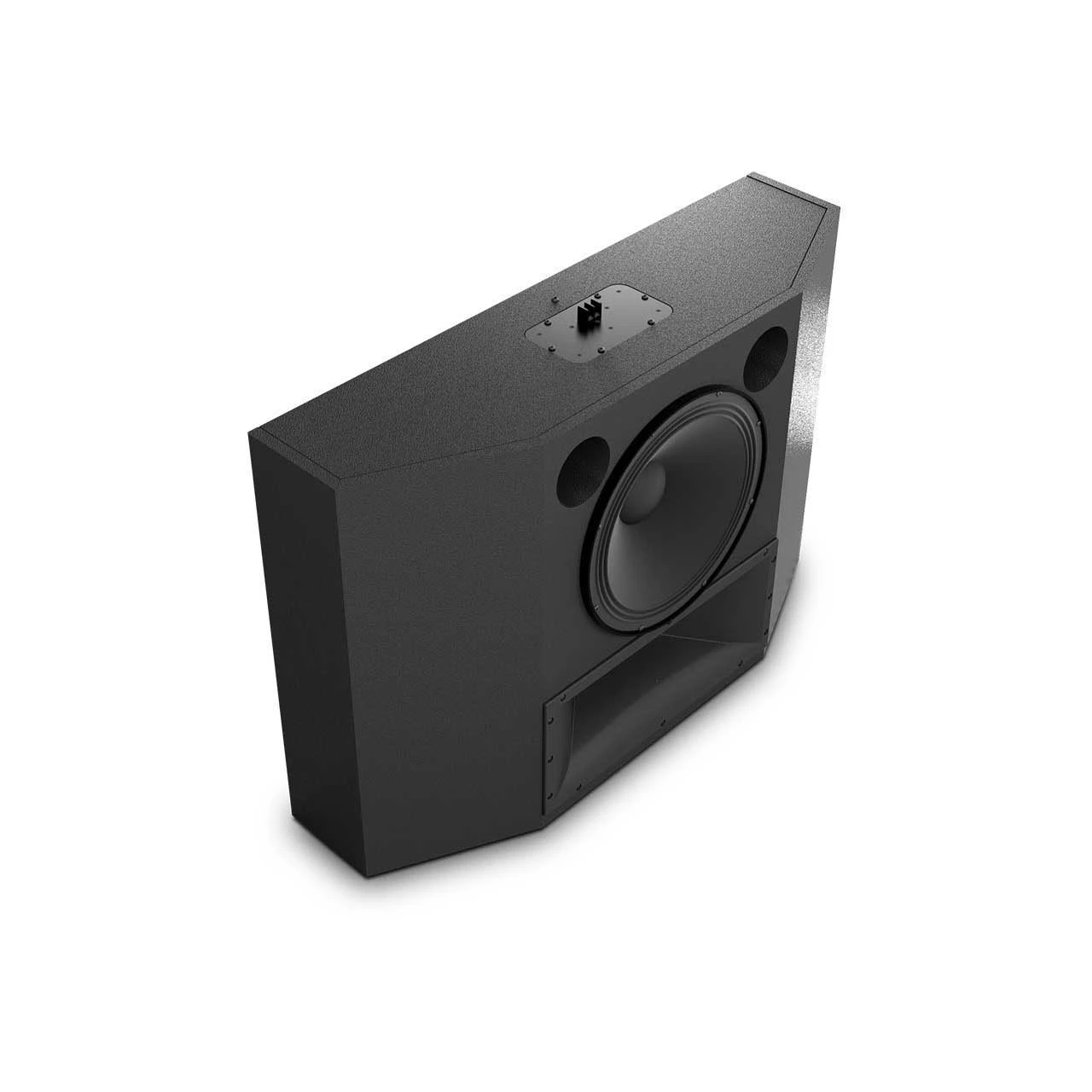

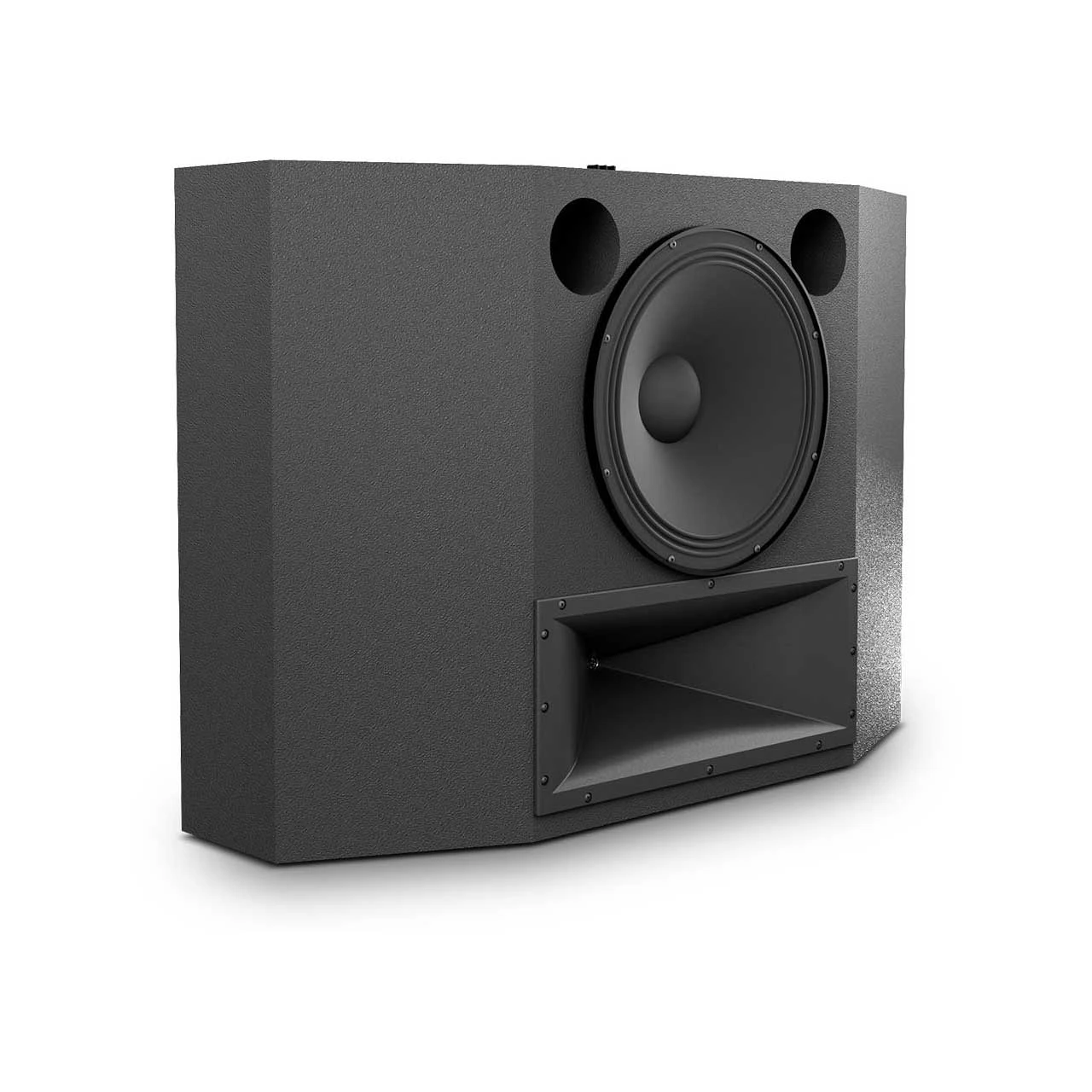

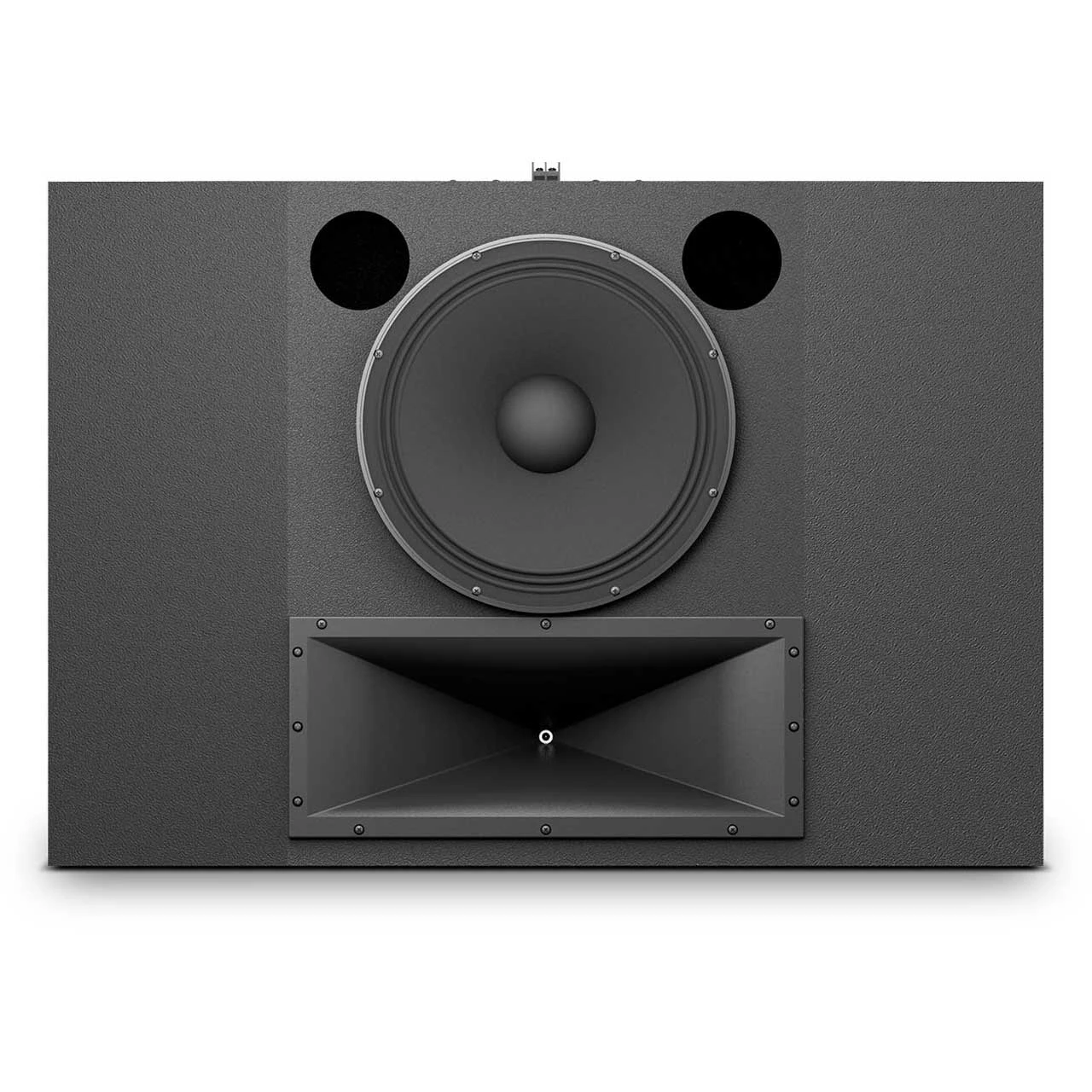

The JBL C211 Two-Way ScreenArrayr Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. The C211 has a depth of 12″, making it perfect for small cinemas with space constraints. The C211 uses the same high frequency driver technology that is found in the 7 Series master reference studio monitors, which is trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house-just like the creators intended. With a maximum throw of 16 m (52′), the C211 is designed for a small to medium cinema as well as VIP viewing rooms.
-
Features:
- Next-generation two-way ScreenArrayr design for maximum output, improved coverage and minimum distortion
- C211 2409H uses same HF driver as 7 Series master reference studio monitors
- 12″ footprint saves space without sacrificing performance
- Advanced passive crossover network combined with leading edge DSP in the amplifier produce highly accurate playback and response
- Designed for small cinemas and VIP rooms for a maximum throw of 13.5m (44.28ft)
-
Specifications:
- Frequency Response:
(-3dB): 77Hz – 14kHz
(-10 dB): 44Hz – 18kHz - Free Field Sensitivity: 99 dB SPL@1W, 1M
- Calculated Max SPL: 125dB
- Rated Impedance: 8Ω
- Minimum Impedance: 7Ω @167Hz
- Power Handling (2Hr AES Rating): 300W
- Power Handling (100Hr AES Rating): 175W
- Furthest Seat: 13.5m/44.28ft
- Unit Weight: 79Lbs (35.82kg)
- Dimensions Inches (HxWxD): 31 x 40 x 12″ (78.74 x 101.6 x 30.48cm)
- Frequency Response:
