JBL ASB7118 Ultra Long Excursion High PowerSingle 18 Inch Subwoofer

Original price was: $354.00.Current price is: $97.99.

SKU: BWFYA 57975953 Categories: Sale, Subwoofers

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

ASB7118 – Overview

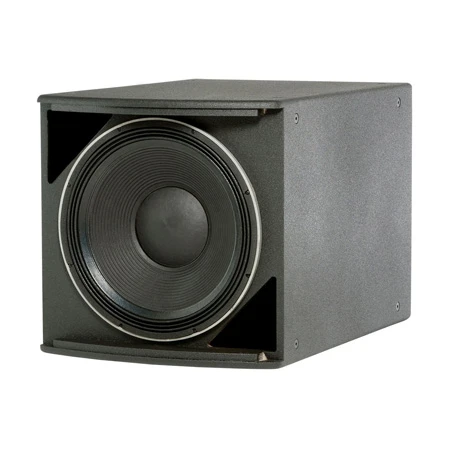

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18″ Differential Drive woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5″).

Features:
- 2269H 18″ Differential Drive dual voice coil dual gap, neodymium magnet transducer
- 2000 watts continuous pink noise,
- 8000 watts peak power handling capacity
- Ultra Long Excursion
- Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
Specifications:
- Frequency Range (-10 dB) 22 Hz – 1 kHz
- Frequency Response (± 3 dB) 34 Hz – 1 kHz
- Transducer Power Rating 2000 W (8000 W peak), 2 hrs
- Long-Term System
- Power Rating 1200 W (4800 W peak), 100 hrs.
- Maximum SPL (1m) 25 Hz – 200 Hz: 129 dB-SPL cont avg (135 dB peak)
- System Sensitivity 25 Hz – 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
- Nominal Impedance 8 ohms
- Low Frequency Driver 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive VGC driver
- Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
- Finish Black DuraFlex finish. White available upon request.
- Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Input Connector Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
- Dimensions (H x W x D in
- vertical cabinet orientation) 546 x 560 x 815 mm
- (21.5 x 22.0 x 32.1 in)
- Net Weight 42.9 kg (94.5 lb)
- Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers.
