JBL AM7215/64-WH High Power 15in 2-Way Full-Range Loudspeaker System With JBL Differential Drive - White

JBL AM7215/64-WH High Power 15in 2-Way Full-Range Loudspeaker System With JBL Differential Drive - White - Image 2

JBL AM7215/64-WH High Power 15in 2-Way Full-Range Loudspeaker System With JBL Differential Drive - White - Image 3

JBL AM7215/64-WH High Power 15in 2-Way Full-Range Loudspeaker System With JBL Differential Drive – White

Original price was: $324.00.Current price is: $96.99.

SKU: BWFYA 50358603 Categories: PA Speakers, Sale

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

AM7215/64-WH – Overview

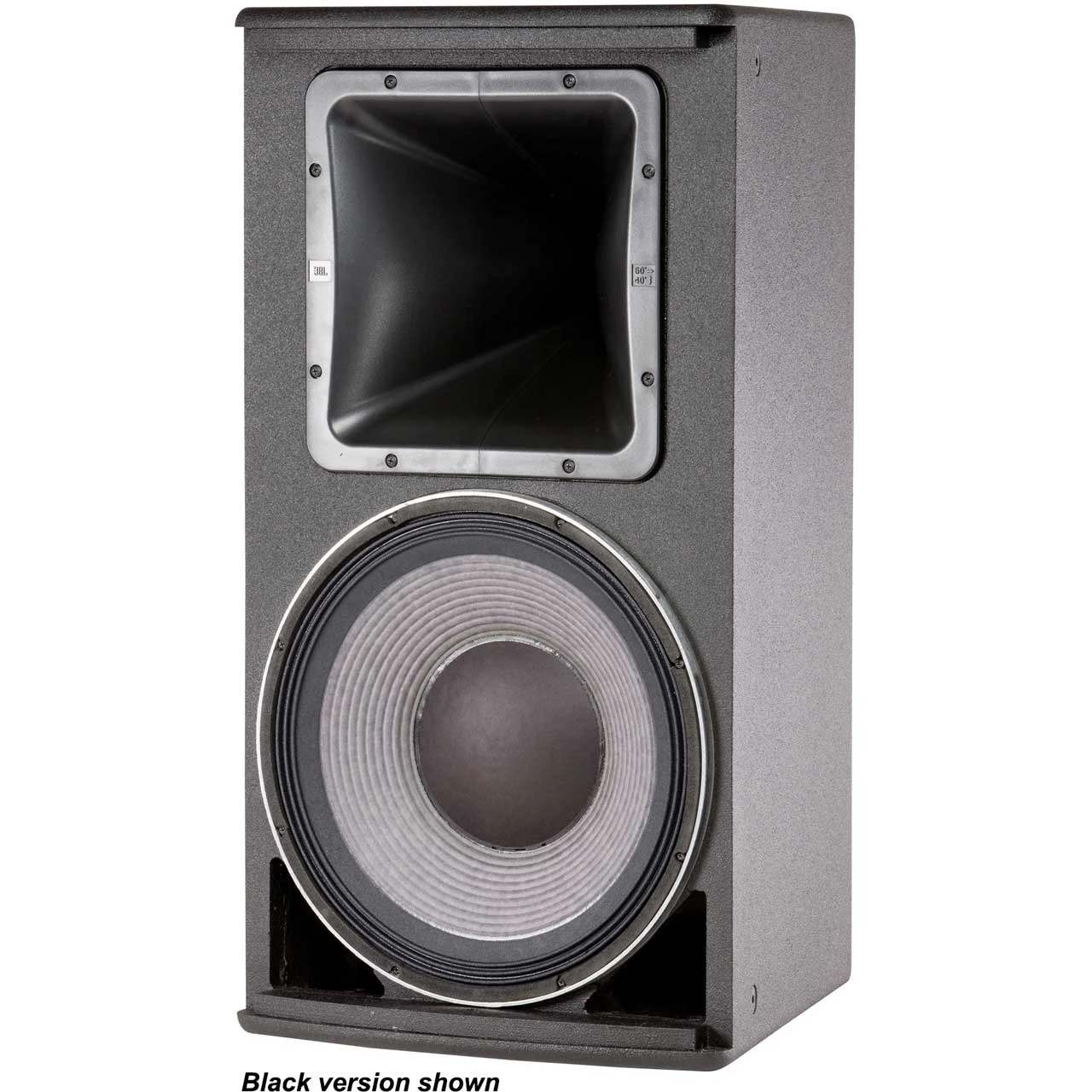

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Applications
Performing Arts Facilities
Theatrical Sound Design
Auditoriums
Worship Facilities
Live Clubs
Dance Clubs
Sports Facilities
Themed Entertainment Venues

Features:
- 60° x 40° Coverage
- 2265H Differential Drive Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
Specifications:
- Frequency Range (-10dB): 34 Hz – 20 kHz
- Frequency Response (±3 dB): 40 Hz – 18 kHz
- Coverage: /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
- LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Driver driver with 75 mm (3 in) dual
  voice coil
- HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
- System Type: 15″ Two – Way, High Power, Full – Range
- Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
- Net Weight (each): 27.2 kg (60 lb)
- Crossover Modes: Bi-amp/Passive switchable
- Passive Crossover Frequency: 1.8 kHz
- Transducer Power Rating (AES): LF: 1000 W (4000 W peak), 2 hr750 W (3000 W peak), 100
  hrsHF: 100 W (400 W peak), 2 hrs
- System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs
- Maximum SPL (1m): Bi-amp mode:LF: 128 dB-SPL cont avg (134 dB peak)HF: 135 dB-SPL cont
  avg (141 dB peak)Passive mode:124 dB-SPL cont avg (130 dB peak)
- System Sensitivity (1w @ 1m): Passive mode: 96 dB SPL
- Nominal Impedance: 8 ohms
- System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)
- Nominal LF Driver Impedance: 8 ohms
- Nominal HF Driver Impedance: 8 ohms
- Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finish birch plywood
- Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
- Environmental: Mil-Std 810; IP-x3 per IEC529.
GTIN:

0691991011474
