AM7200/64 – Overview
AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
-
Features:
- 60° x 40° Coverage, rotatable for use in either vertical or horizontal orientation.
- CMCD Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
- 2432H High-Frequency Compression Driver
- PT Progressive Transition Waveguide for excellent pattern control with low distortion.
- Bi-Amp/Passive Switchable.
- Optional planar array frame kits
-
Specifications:
- System
- Frequency Range (-10 dB): 260 Hz – 20 kHz
- Frequency Response (±3 dB): 330 Hz – 18 kHz
- Coverage Pattern: 60° x 40°, rotatable waveguide
- Directivity Factor (Q): 20
- Directivity Index (DI): 13 dB
- Crossover Modes: Bi-amp/Passive switchable
- Crossover Frequency: 2.3 kHz
- Transducer Power Rating (AES): MF: 350 W (1400 W peak), 2 hrs / HF: 100 W (400 W peak), 2 hrs
- Long-Term System Power Rating (IEC): MF/HF: 200 W (800 W peak), 100 hrs
- Maximum SPL: Bi-amp mode: MF: 133 dB-SPL cont avg (139 dB peak), HF: 135 dB-SPL cont avg (141 dB peak) / Passive mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
- System Sensitivity (1W @ 1m): Passive mode: 108 dB SPL
Transducers
- Midrange Driver: JBL CMCD-82H Cone Midrange Compression Driver with integral 8″ diameter Differential Drive dual voice-coil internal driver
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m): 108 dB SPL
- High Frequency Driver: JBL 2432H, 1.5″ exit compression driver, 3″ voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m): 115 dB SPL

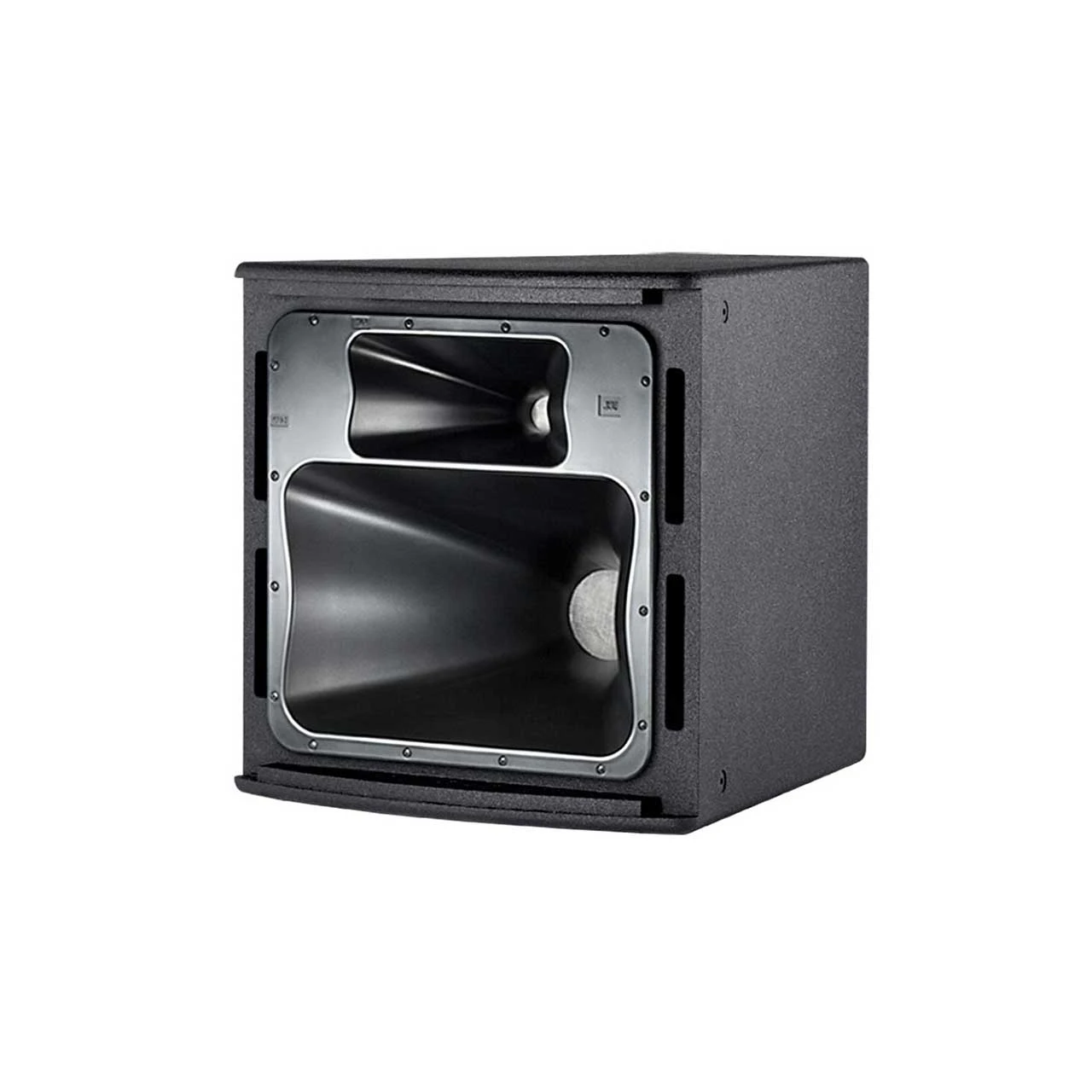

- Waveguide: PT-K64MH
Physical
- Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish: Black DuraFlex finish. White available upon request.

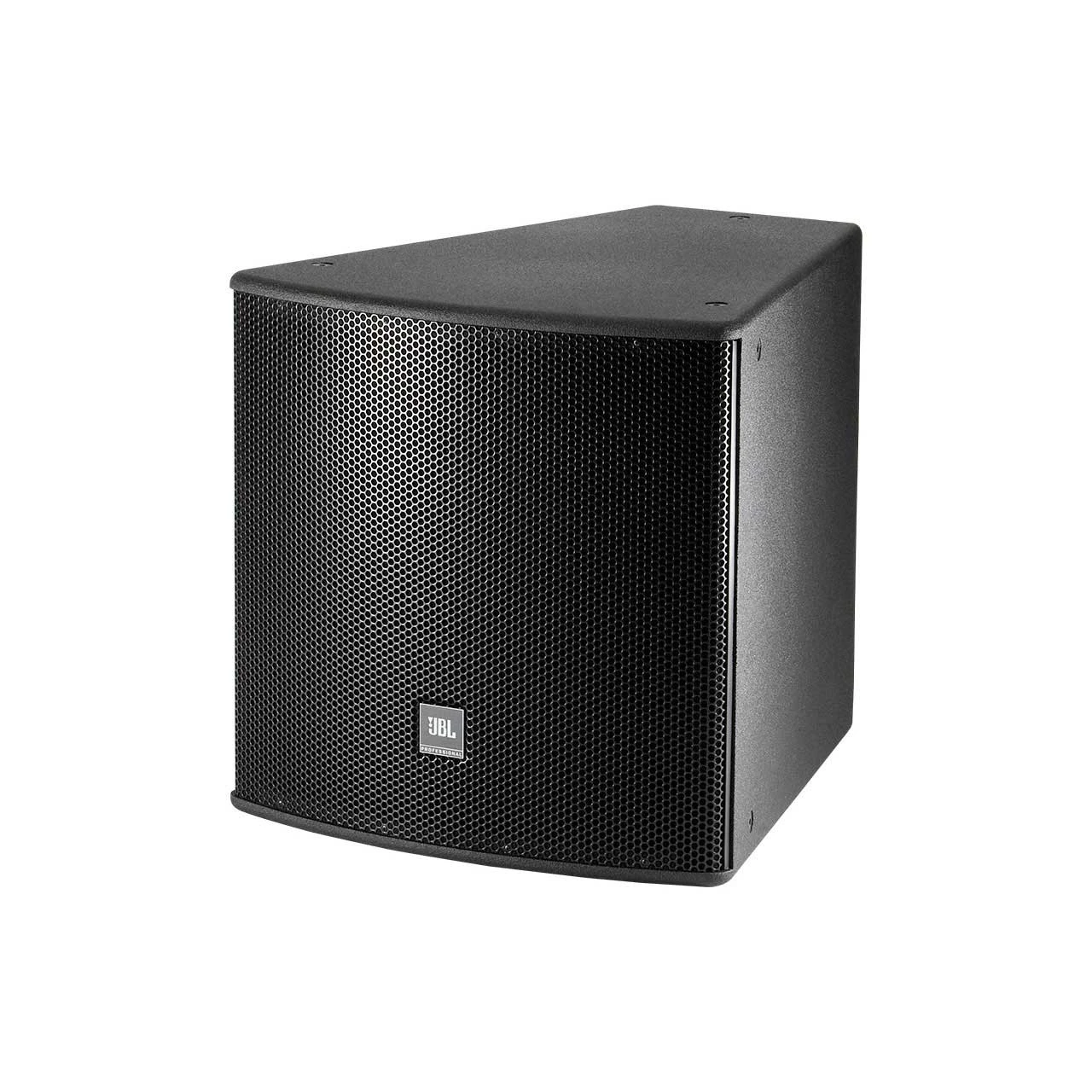

- Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
- Dimensions (HxWxD in vertical cabinet orientation): 21.6″ x 22.1″ x 25.9″
- Net Weight: 60 lb
-
GTIN:
0691991011221
