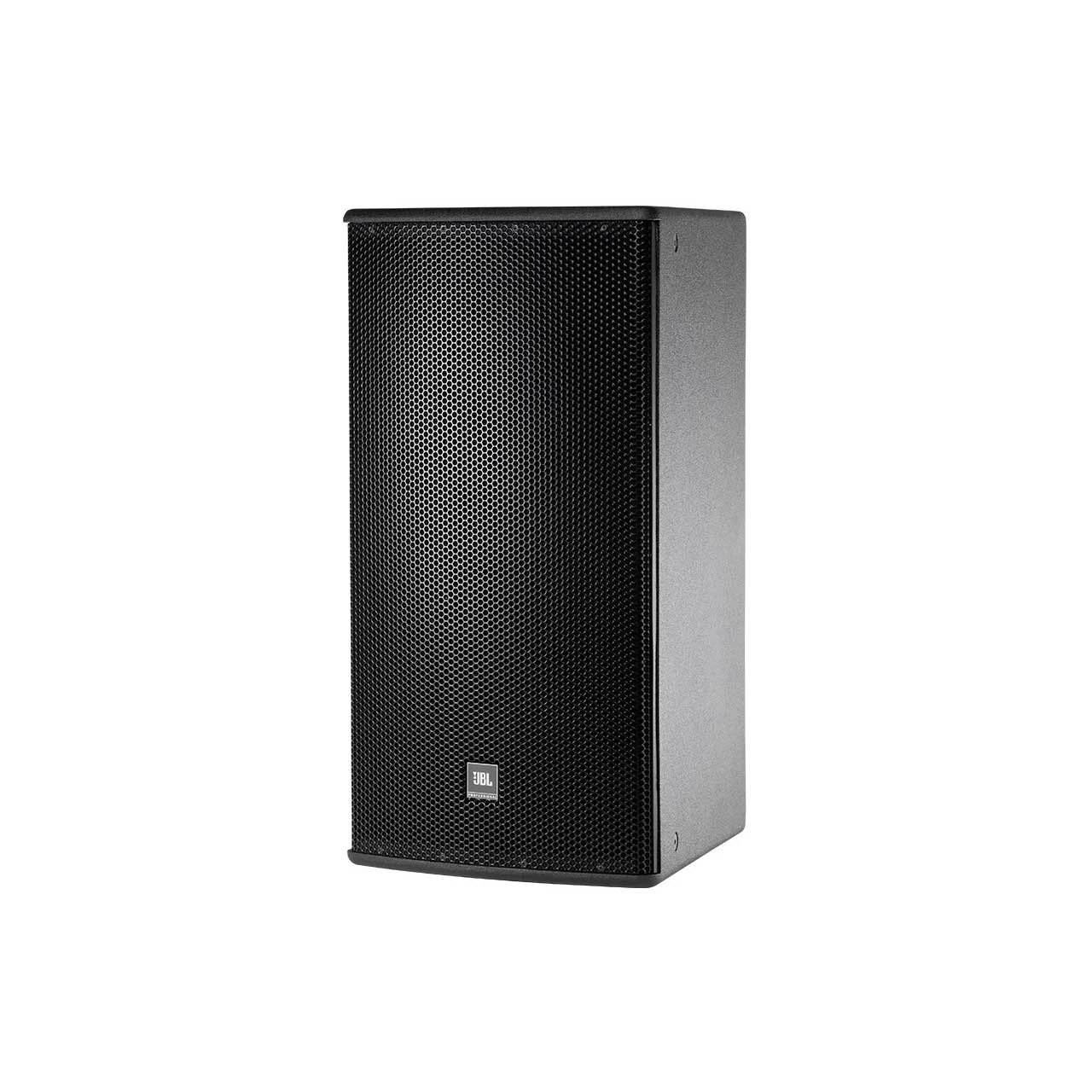

JBL AM5215/95-WH 2-Way Loudspeaker System With 1 X 15 Inch Low Frequency Driver White

JBL AM5215/95-WH 2-Way Loudspeaker System With 1 X 15 Inch Low Frequency Driver White - Image 2

JBL AM5215/95-WH 2-Way Loudspeaker System With 1 X 15 Inch Low Frequency Driver White

Original price was: $396.00.Current price is: $98.99.

SKU: BWFYA 90192582 Categories: PA Speakers, Sale

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

AM5215-95-WH – Overview

2-Way Loudspeaker System with 1 x 15 Inch LF White

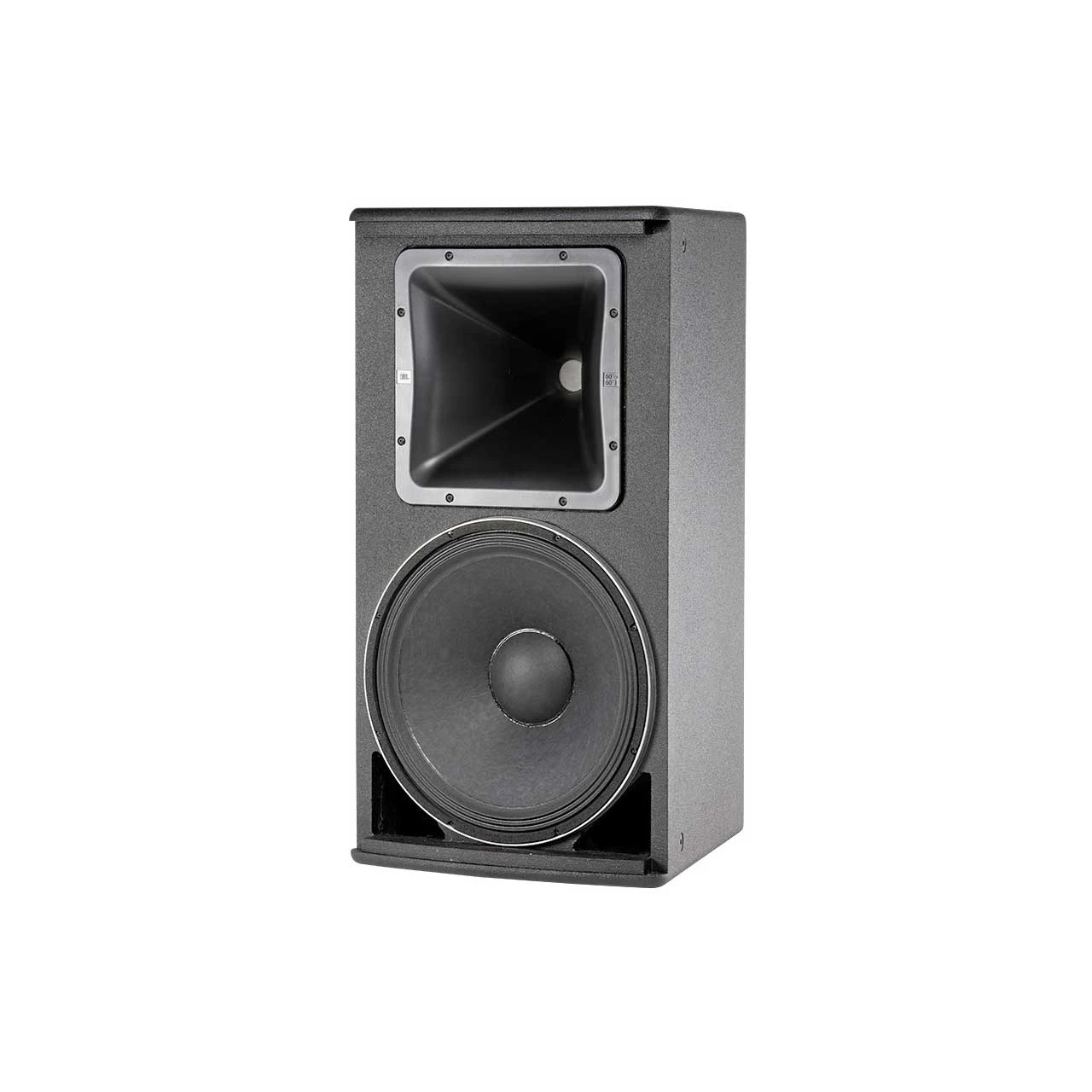

The JBL AM5215/95-WH is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances array ability.

Applications
Performing Arts Facilities
Theatrical Sound Design
Auditoriums
Worship Facilities
Live Clubs
Dance Clubs
Sports Facilities
Themed Entertainment Venues

Features:
- 265H-1 Differential Drive® Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Available in Black, White and WRC/WRX weather resistant finishes
Specifications:
- Frequency Range: (-10 dB) 35 Hz – 20 kHz
- Frequency Response: (±3 dB) 41 Hz – 18 kHz
- Coverage Pattern:
  /64: 60° x 40°
  /66: 60° x 60°
  /95: 90° x 50°
  /26: 120° x 60°
- Directivity Factor (Q): 14.5
- Directivity Index (DI): 11.6 dB
- Crossover Modes: Bi-amp/Passive switchable
- Passive Crossover Frequency: 2 kHz
- Transducer Power Rating (AES):
  LF: 500 W (2000 W peak), 2 hrs
  350 W (1400 W peak), 100 hrs
  HF: 40 W (160 W peak), 2 hrs
- Long-Term System Power Rating: (IEC) Passive mode: 350 W (1400 W peak), 100 hrs
- Maximum SPL – Bi-amp mode:
  LF: 125 dB-SPL cont avg
  HF: 131 dB-SPL cont avg.
- System Sensitivity (1W @ 1m): Passive mode: 98 dB SPL
- Low Frequency Driver: 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m, within operational band): 99 dB SPL
- High Frequency Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m): 115 dB SPL
- Waveguide: PT-H66HF-1
- Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish: Black DuraFlex™ finish. White available upon request
- Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing
- Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications: Mil-Std 810; IP-x3 per IEC529
- Dimensions (HxWxD)(vertical cabinet orientation): 30.8 x 16.6 x 19.85″ (783 x 422 x 504 mm)
- Net Weight: 25.0 kg (55 lb)
- Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
GTIN:

0691991000287
