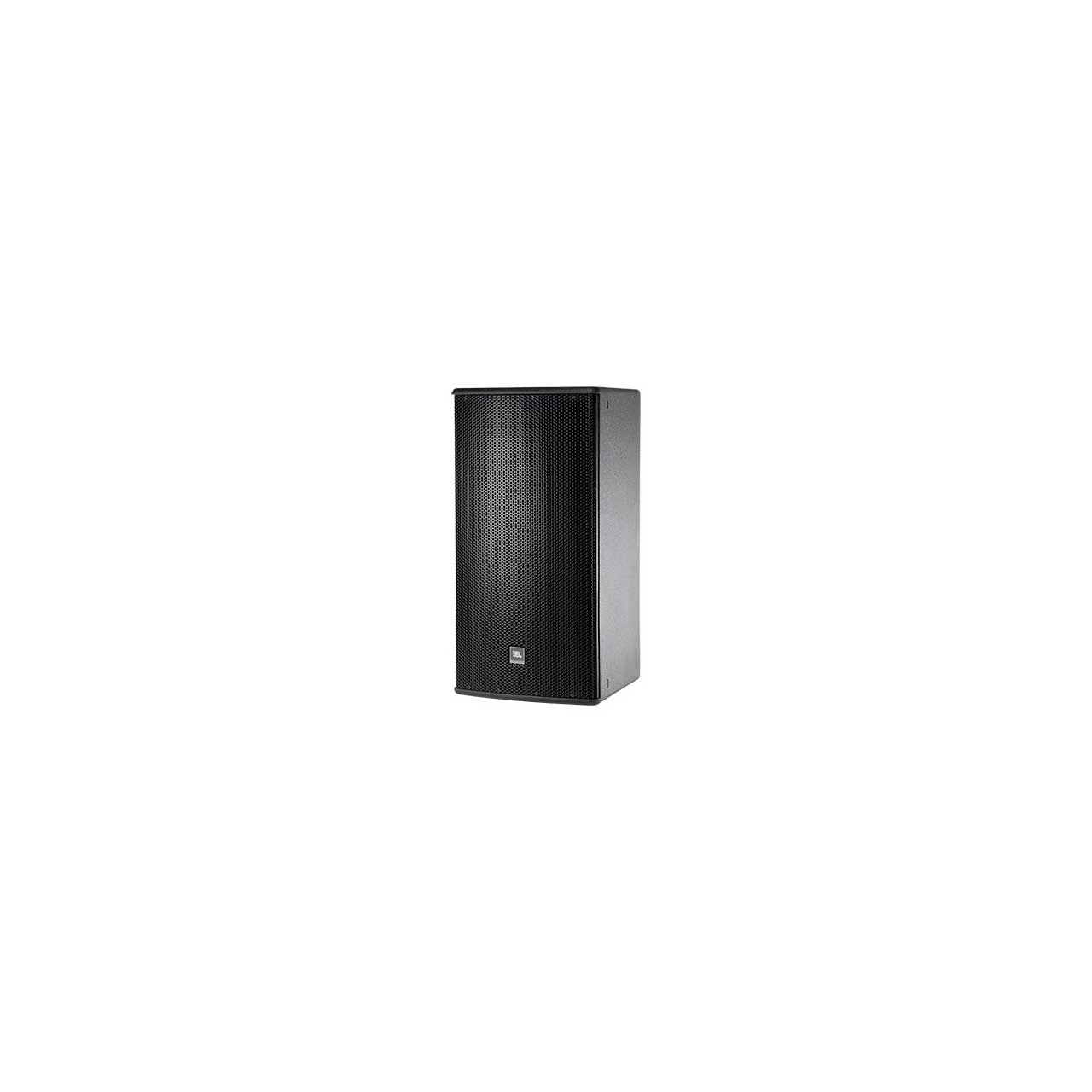

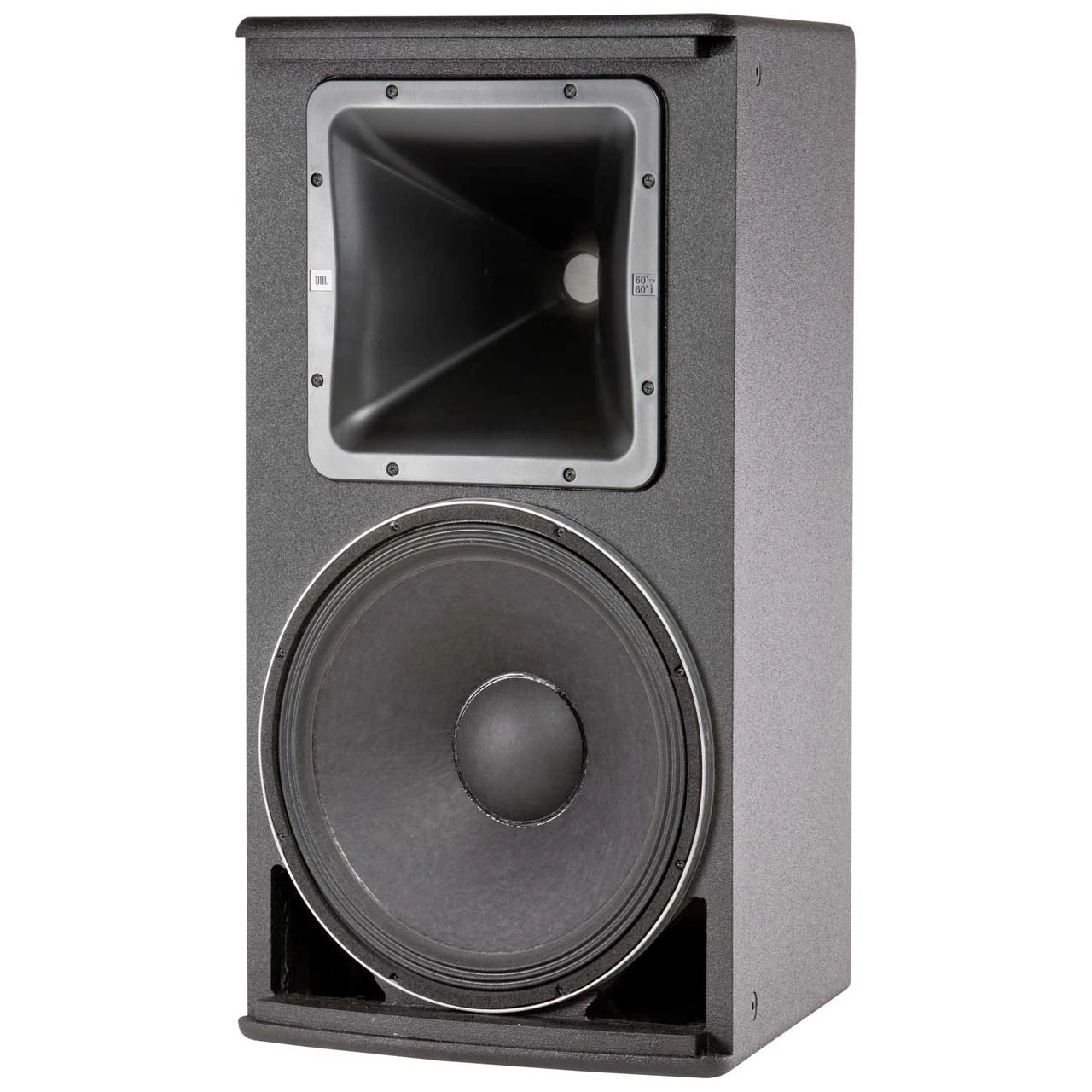

JBL AM5215/95 2-Way Loudspeaker System With 1 X 15 Inch Low Frequency Driver Black

JBL AM5215/95 2-Way Loudspeaker System With 1 X 15 Inch Low Frequency Driver Black - Image 2

JBL AM5215/95 2-Way Loudspeaker System With 1 X 15 Inch Low Frequency Driver Black

Original price was: $319.00.Current price is: $98.99.

SKU: BWFYA 69469783 Categories: PA Speakers, Sale

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

AM5215/95 – Overview

2-Way Loudspeaker System with 1 x 15 Inch LF

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features:
- 265H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PTT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
Specifications:
- Frequency Range (-10 dB) 35 Hz – 20 kHz
- Frequency Response (±3 dB) 41 Hz – 18 kHz
- Coverage Pattern /64: 60° x 40°
- /66: 60° x 60°
- /95: 90° x 50°
- /26: 120° x 60°
- Directivity Factor (Q) 14.5
- Directivity Index (DI): 11.6 dB
- Crossover Modes Bi-amp/Passive switchable
- Passive Crossover Frequency 2 kHz
- Transducer Power Rating (AES) LF: 500 W (2000 W peak), 2 hrs
- 350 W (1400 W peak), 100 hrs
- HF: 40 W (160 W peak), 2 hrs
- Long-Term System Power Rating (IEC) Passive mode: 350 W (1400 W peak), 100 hrs
- Maximum SPL Bi-amp mode:
- LF: 125 dB-SPL cont avg
- HF: 131 dB-SPL cont avg.
- System Sensitivity (1W @ 1m) Passive mode: 98 dB SPL
- Low Frequency Driver 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
- Nominal Impedance 8 ohms
- Sensitivity (1W @ 1m, within operational band) 99 dB SPL
- High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
- Nominal Impedance 8 ohms
- Sensitivity (1W @ 1m) 115 dB SPL
- Waveguide PT-H66HF-1
- Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish Black DuraFlex finish. White available upon request.
- Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications Mil-Std 810; IP-x3 per IEC529.
- Dimensions (H x W x D in
- vertical cabinet orientation) 783 x 422 x 504 mm
- (30.8 x 16.6 x 19.85 in)
- Net Weight 25.0 kg (55 lb)
GTIN:

0691991011207
