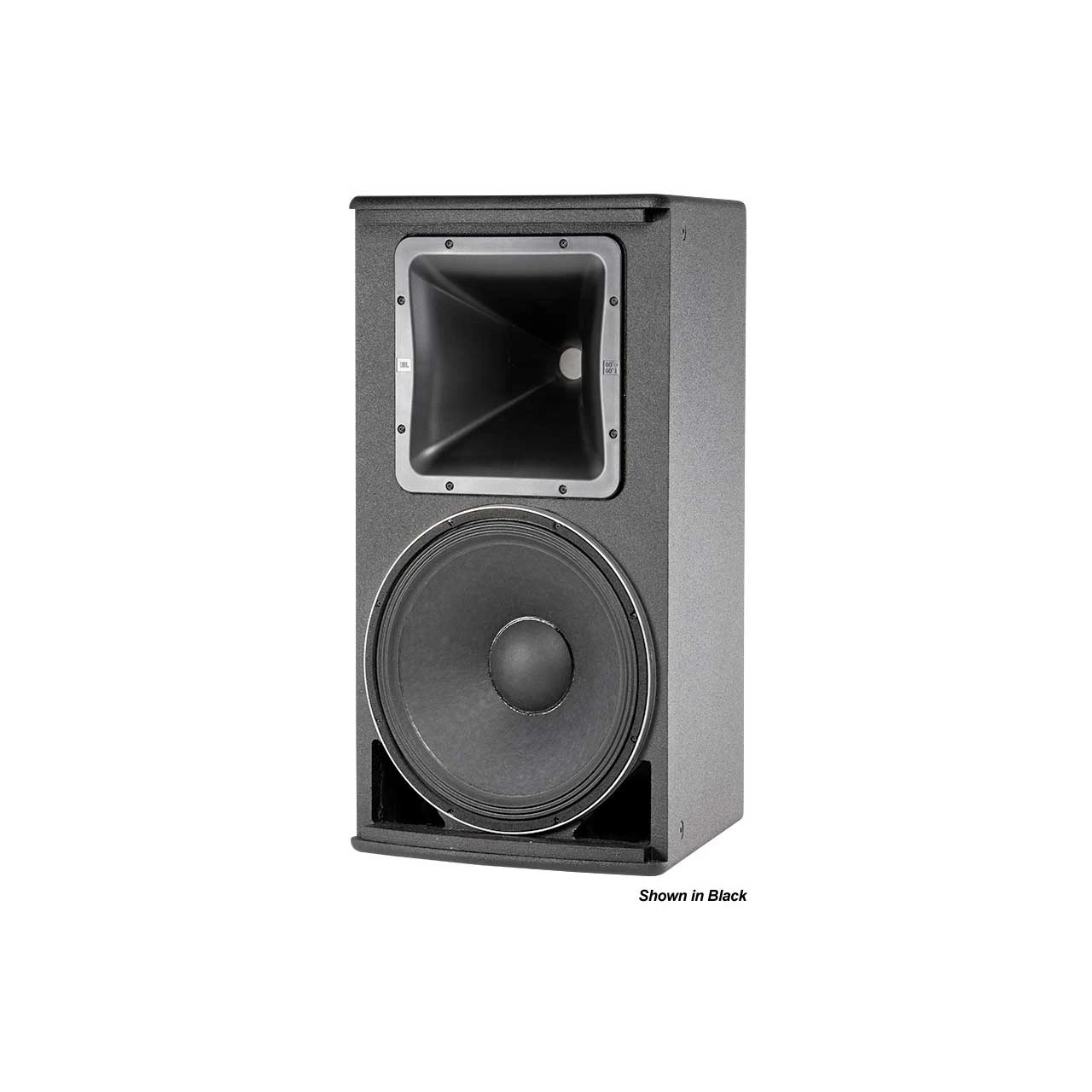

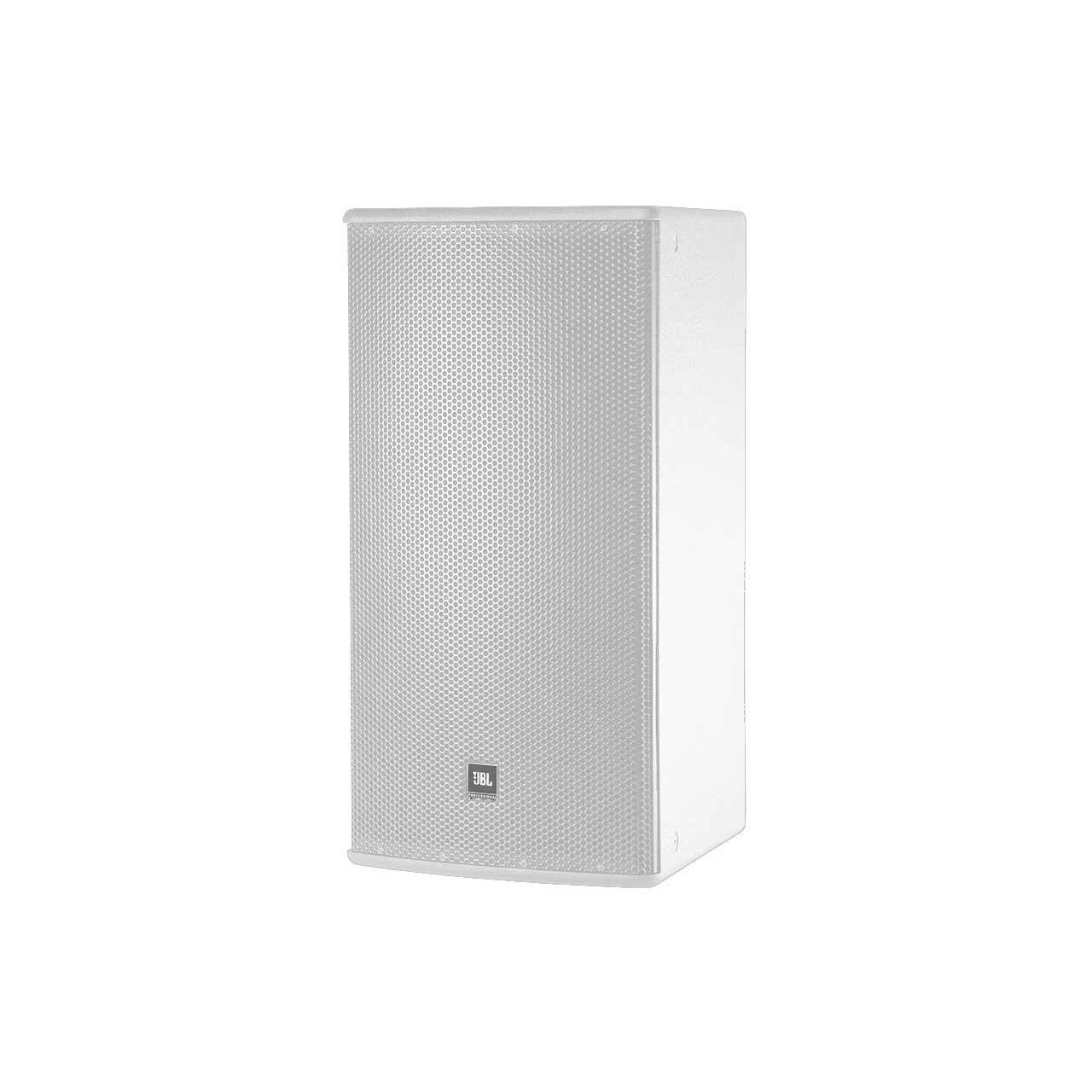

JBL AM5215/26-WH Two-Way Full Range Loudspeaker - Whte

JBL AM5215/26-WH Two-Way Full Range Loudspeaker - Whte - Image 2

JBL AM5215/26-WH Two-Way Full Range Loudspeaker – Whte

Original price was: $385.00.Current price is: $97.99.

SKU: BWFYA 86093304 Categories: PA Speakers, Sale

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

AM5215/26-WH – Overview

The white JBL Professional AM5215/26 Passive 2-Way 15″ Loudspeaker System is a versatile, medium-power speaker well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The AM5215/26 is comprised of the JBL Differential Drive, dual-voice coil and dual-magnetic gap 265H-1 15″ low-frequency driver, and 2408H-1 high-frequency 1.5″ exit, 1.5″ voice-coil compression driver. The large format PT Progressive Transition waveguide provides a 120 x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The AM5215/26 will perform as either a bi-amped or passive cabinet, at the flick of a switch.

Features:
- 120 x 60° coverage
- 265H-1 Differential Drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large Progressive Transition (PT) waveguide for remarkable pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
Specifications:
- Configuration: Passive 2-Way
- Enclosure Type: Loudspeaker
- Total Power Capacity
  LF: 500 W 2000 W Peak
  HF: 40 W 160 W Peak
  Passive: 350 W 1400 W Peak
- System Impedance
  LF: 8 Ohms (Nominal)
  HF: 8 Ohms (Nominal)
- HF Driver: 1 x 1.5″ / 3.81 cm Compression Driver
- HF Voice Coil: 1.5″ / 38.1 mm
- LF Driver: 15″ / 381 mm Woofer
- LF Voice Coil: Dual 2″ / 50.8 mm
  Performance
- Frequency Range: 35 Hz to 20 kHz -10 dB
- Frequency Response: 41 Hz to 18 kHz ±3 dB
- Maximum SPL:
  125 dB (LF, Continuous)
  131 dB (LF, Peak)
  129 dB (HF, Continuous)
  135 dB (HF, Peak)
- Coverage Angle: 120° H x 60° V (Rotatable Horn)
- Directivity: 8.6 dB (Directivity/Q Factor), 9.3 dB (Directivity Index)
  Connectivity
- Audio I/O: 1 x speakON Input, 1 x Barrier Strip Input
- Network: I/O: None
- USB: None
- Wireless Connectivity: None
  Signal Processing
- Crossover: 1.3 kHz (Passive/Bi-Amp)
- Filters: None
- Dynamic Processing: Compression
  Physical
- Mounting: 15 x M10 Bracket Point (Bottom, Each Side, Rear, Top)
- IP Rating: IPX3
- Construction: Material Plywood, Stainless Steel Grille
- Certifications: CE, as per Manufacturer
- Dimensions: 30.7 x 16.5 x 19.8″ / 781 x 420 x 503 mm
- Weight: 55.1 lb / 25 kg
GTIN:

0691991011108
