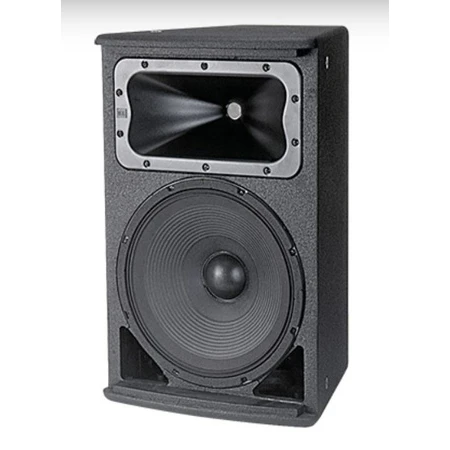

AC2212/00-WH – Overview
AC2212/00 is a compact 2-way full-range loudspeaker system comprised of one 300 mm (12 in) low frequency driver and one 38 mm (1.5 in) exit/ 44 mm (1.75 in) voice-coil compression driver. The PT Progressive Transition waveguide provides wide 100° by 100° coverage. High-slope passive crossovers minimize band overlap.
The cabinet is fitted with M10 threaded suspension points. Optional U-bracket, as well as pre-engineered array bracketry is available for easy installation. Four threaded inserts located on back of the enclosure allow attachment of an Omnimount™ or similar mounting bracket.
AC2212/00 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications such as: Lecture halls, Houses of worship, Corporate learning centers, Small performing arts facilities, Theatrical sound design, Auditoriums, Sports facilities, Themed entertainment venues.
Note: Item pictured may not represent actual color.
-
Features:
- 100° x 100° Coverage
- PT™ Progressive Transition™ Waveguide for good pattern control with low distortion
- Bi-Amp/Passive Switchable
- Optional U-Bracket for easy installation
-
Specifications:
- Frequency Range: 50 Hz – 19 kHz (-10 dB)
- Frequency Response: 55 Hz – 17 kHz ( ± 3 dB)
- Coverage Pattern: 100°x 100°
- Directivity Factor (Q): 7.1
- Directivity Index (DI): 8.5 dB
- Crossover Modes: Bi-amp/Passive switchable
- Passive Crossover Slopes: 4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
- Transducer Power Rating (AES) LF: 300 W (1200 W peak), 2 hrs; 250 W (1000 W peak), 100 hrs; HF: 50 W (200 W peak), 2hrs
- Long-Term System Power Rating (IEC) Passive mode: 250 W (1000 W peak), 100 hrs
- Maximum SPL Bi-amp mode:
- LF: 120 dB-SPL cont avg (126 dB peak)
- HF: 129 dB-SPL cont avg (135 dB peak)
- Passive mode: 120 dB-SPL cont avg (126 dB peak)
- System Sensitivity Passive mode: 95 dB SPL (1W @ 1m)
- Input: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
-
GTIN:
0691991010651
