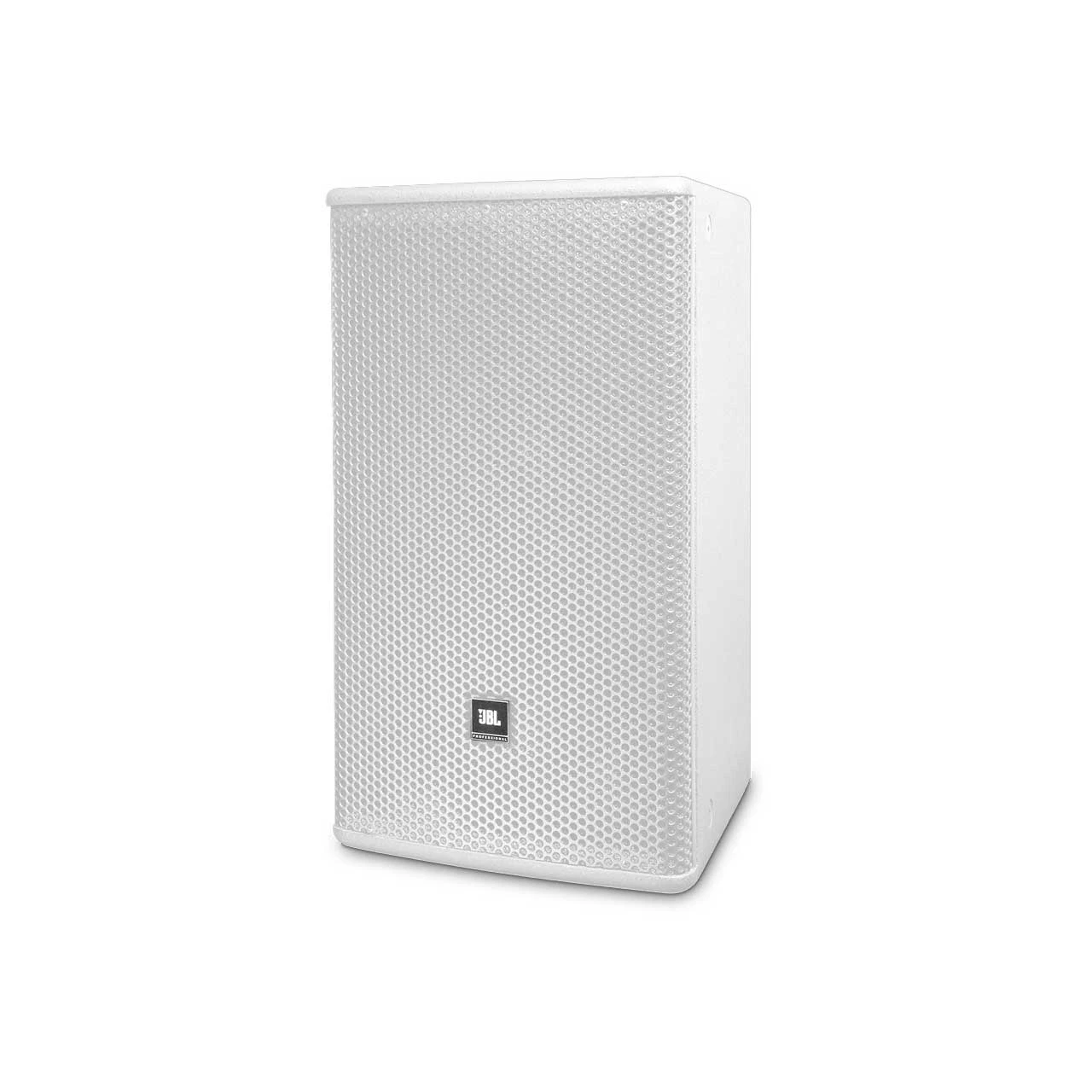

JBL AC195-WH 10-Inch 2-Way Full-Range System – White
Original price was: $400.00.$99.99Current price is: $99.99.
- Where quality meets convenience.
- Control the delivery date and try to deliver it in the fastest time
- Protect Your Wallet with Safe Payments
- Quality products, fair prices.
AC195-WH – Overview

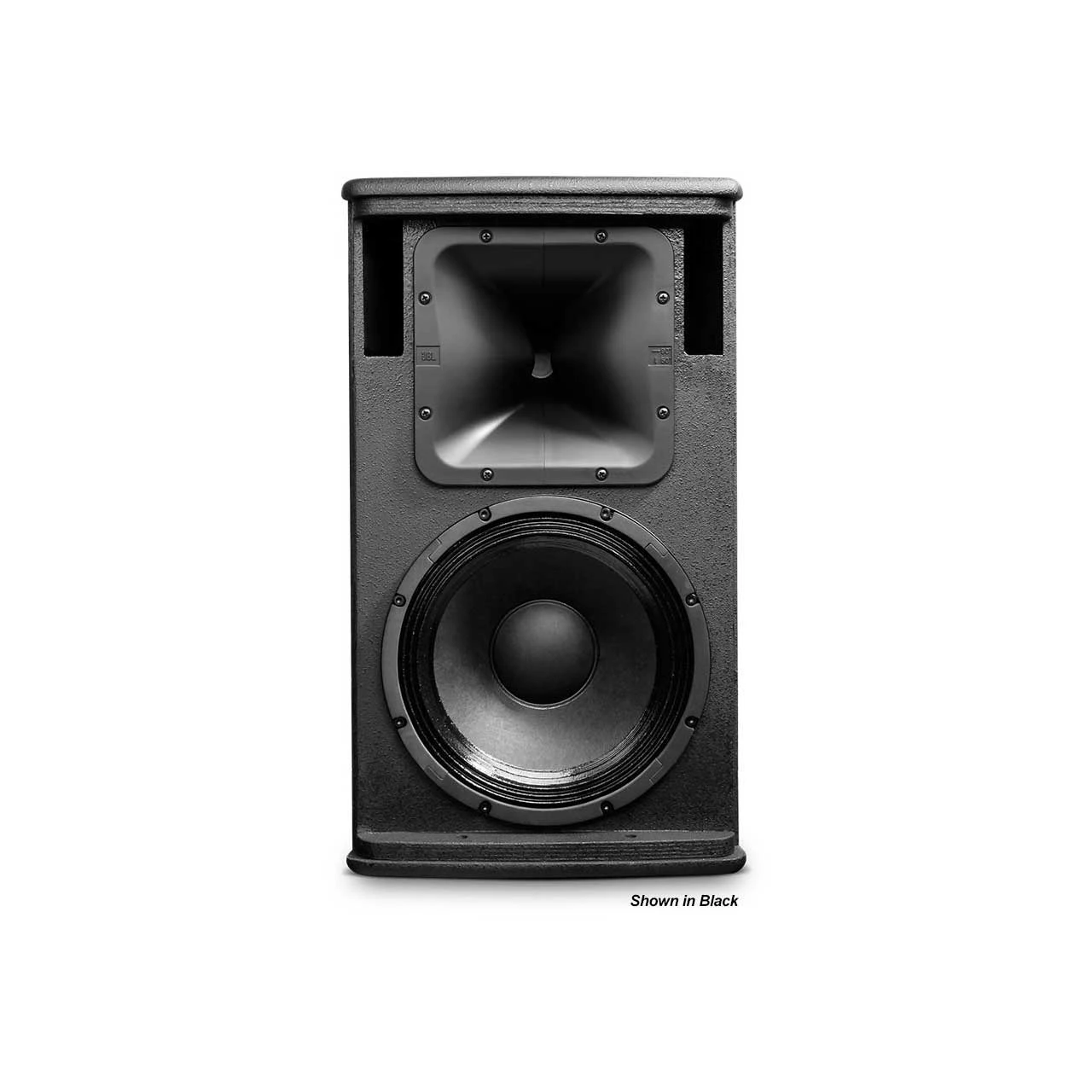

The white AC195 10″ 2-Way Full-Range Passive Loudspeaker System from JBL features one 10″ low frequency driver and one 1″ exit/1.5″ voice-coil compression driver. The rotatable PT Progressive Transition waveguide provides 90 x 50° coverage in vertical cabinet orientation. High-slope passive crossovers minimize band overlap and offer well-controlled off-axis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type of mounting hardware.
Applications
Performing Spaces
Clubs and Bars
Houses of Worship
Multimedia Spaces
Retail and Hospitality Spaces
Presentation Suites
Educational Facilities
-
Features:
- 5/8″ enclosure
- 10″ LF transducer
- 90 x 50° Progressive Transition Field Rotatable Waveguide with a 1″ exit/1.5″ voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for flexibility
-
Specifications:
- Active or Passive: Passive
- Frequency Response: ± 3dB 85 Hz to 18 kHz
- Frequency Range: -10 dB: 68 Hz to 20 kHz
- Power Capacity: 300 W (1200 W peak), 2 Hours: 200 W/400 W/800 W (Continuous/Program/Peak)
- System Power Rating (AES): 300 W (1200 W peak), 2 hours
- Maximum Sound Pressure Level (SPL): 3.2′ (1 m): 118 dB (124 dB peak)
- Nominal Sensitivity: 1 W @ 3.2′ / 1 m: 95 dB
- Impedance: 8 Ohms
- Coverage Pattern: 90 x 50° (H x V)
- Crossover: 1.8 kHz
- Low Frequency Driver: 1 x 10″ (254 mm) woofer (P/N: 5050692) with 2.5″ (63.5 mm) voice-coil
- High Frequency Driver: 1 x 2408H-2 driver with 1″ (25.4 mm) exit/ 1.5″ (38 mm) voice-coil
- Enclosure Material: 5/8″ (15 mm) multi-ply hardwood plywood
- Grille: Powder coated, 0.05″ (1.5 mm) perforated steel, with acoustically transparent black foam backing
- Input Connections: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
- Mounting: 14 x M10 threaded suspension points, 4 x M10 for wall mount bracket
- Dimensions: 21 x 12.2 x 12.9″
- Weight: 28.8 lb (13.1 kg)
-
GTIN:
0691991029004
