AC15 – Overview
The JBL AC15 is an ultra-compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting.

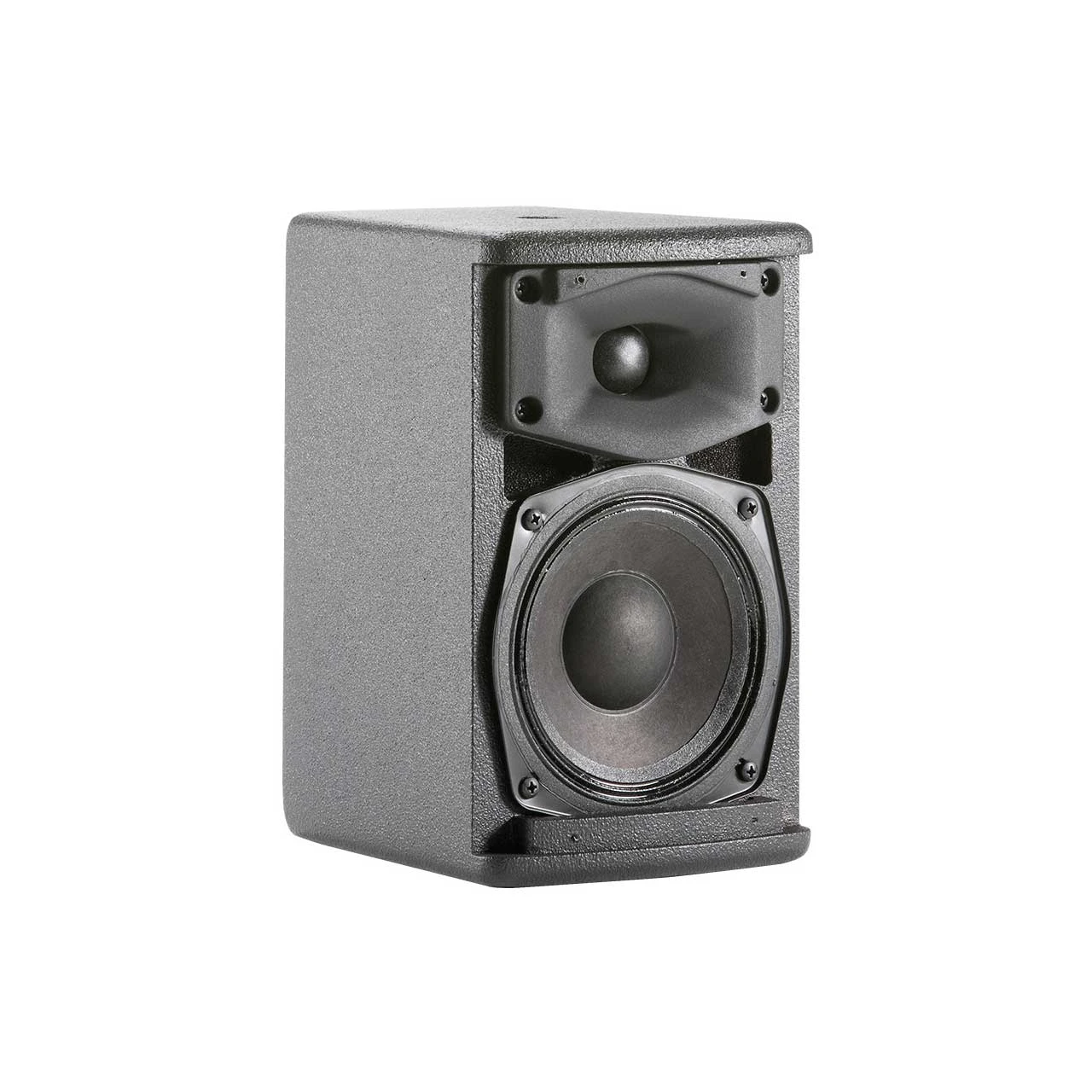

The high frequency device is a 1″ dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC15 utilizes a 5.25″ Symmetrical Field Geometry (SFGâ„¢) LF Transducer with a copper-clad aluminum edge wound 1.5″ voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion.
The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket.

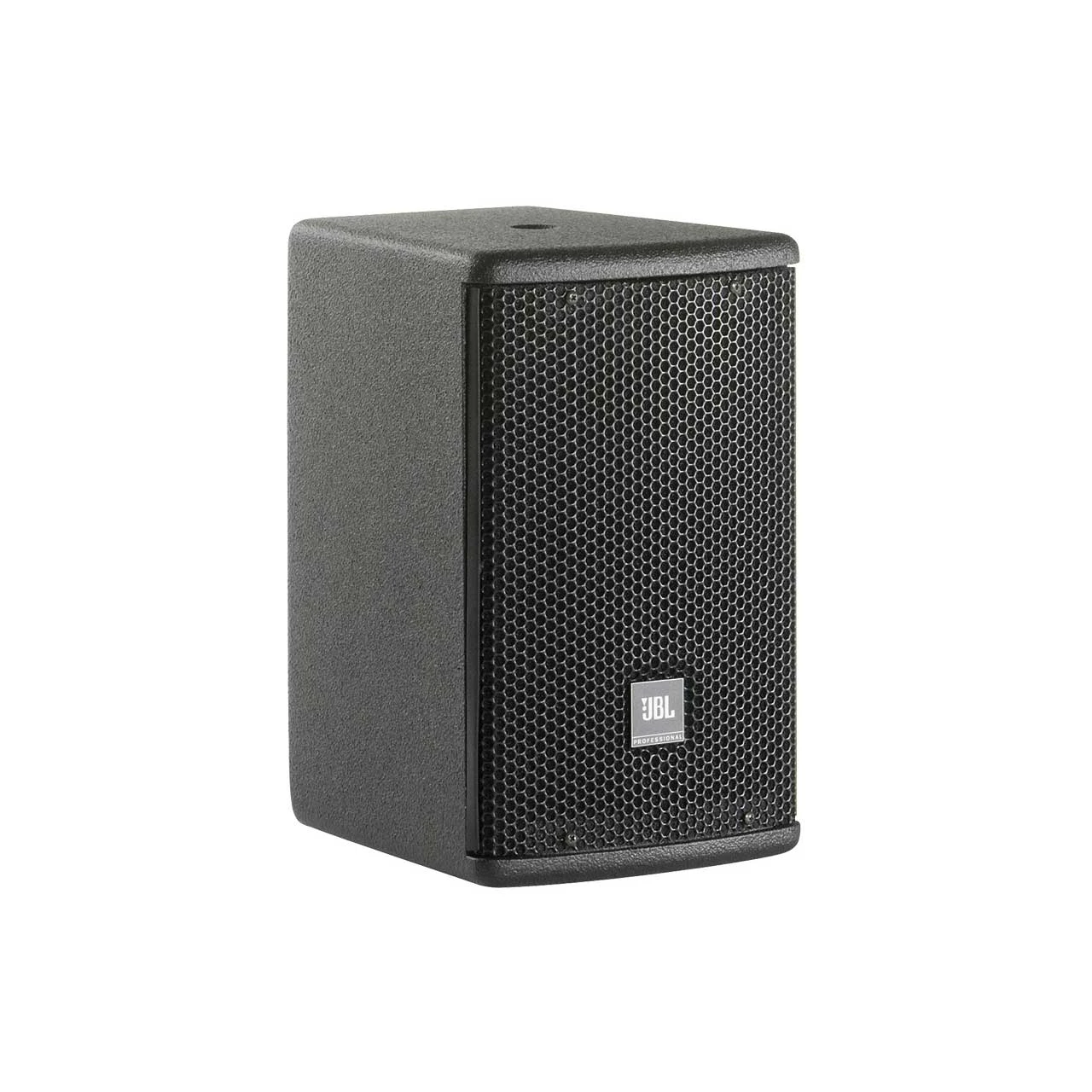

The tough plywood enclosure features JBL’s textured DuraFlexâ„¢ finish and is equipped with a heavy duty powder coated steel, foam-backed grille.
Applications:
Performing Arts Facilities
Houses of Worship
Sports Facilities
Multi Media Spaces
Retail Spaces
Presentation Suites
Educational Facilities
Portable Audio-Visual Systems
-
Features:
- 1″ Dome Tweeter with 90° x 90° Coverage
- 135 mm (5.25 in) LF transducer
- Ultra compact enclosure
- 300W Program Power
- Dual Neutrik NL4 connectors plus screw terminal
- FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Attachment points for optional U-bracket
-
Specifications:
- Frequency Range (-10dB): 80 Hz -20 kHz
- Frequency Response (±3 dB): 90 Hz -18 kHz
- System Power Rating: 225 W (AES rated) 150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)
- Impedance: 16 ohms
- Coverage Pattern: 90° x 90°
- Dimensions (H x W x D): 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)
- Net Weight (each): 4.7 kg (10.5 lb)
- Crossover Modes: Passive
- Maximum SPL (1m): 108 dB
- System Sensitivity (1w @ 1m): 86 dB SPL
- Nominal Section Impedances: 16 ohms
- LF Driver: 1 x JBL 225J, 135 mm (5.25 in) SFGâ„¢ driver with 38 mm (1.5 in) edge wound voice coil
- Nominal LF Driver Impedance: 16 Ohms
- HF Driver: 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
- Enclosure: 12 mm exterior grade multi-ply hardwood plywood
- Suspension Attachment: 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT
- Environmental: Mil-Std 810; IPx3 per IEC529.
-
Item Includes:
- 1x JBL AC15 Ultra-Compact 2-Way Loudspeaker with 1x 5.25-Inch LF – 90×90 Degree Coverage – Passive
-
GTIN:
0691991010569
| Sizes | 5.25-Inch LF, 6.5-Inch LF |
|---|
