JBL 8138 8 Inch (200 Mm) Full-Range In-Ceiling Loudspeaker – 4 Pack

Original price was: $252.00.Current price is: $95.99.

SKU: BWFYA 94301551 Categories: Ceiling & Wall Mount Speakers, Professional

Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Protect Your Wallet with Safe Payments
Quality products, fair prices.

Description
Reviews (0)

8138-4 – Overview

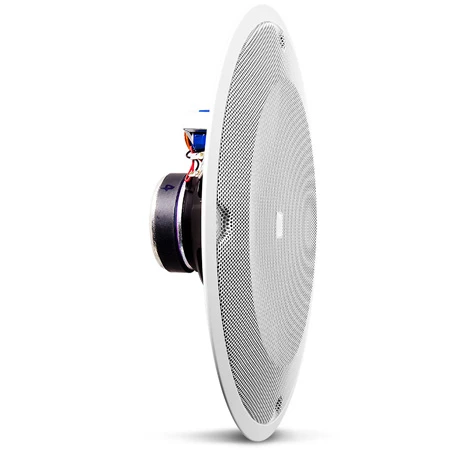

The JBL 8138-4 is a 4 pack of the JBL 8138

The 8138-4 is an 8″ ceiling speaker designed for use with a pre-install inceiling backcan, resulting in highfidelity performance at a costeffective price point. The 8138 is ideal for a wide variety of commercial sound applications from restaurant and retail to professional offices and reception areas.

The built-in 6 Watt transformer allows use on 70V or 100V distributed speaker lines. High sensitivity of 97 dB delivers maximum sound levels using minimal amplifier power, allowing the use of smaller power amplifiers compared to when using lower sensitivity drivers.

The driver features a 25 mm (1 in) voicecoil with Kapton coil former for reliability. The treated cloth surround provides deeper bass response compared with typical paper-roll surrounds, for fuller sound quality.

The 8138 fits the MTC-81BB8 backcan and MTC-81TB8 tile bridge, or can be used with most in-ceiling backcan/tile bridge systems designed with four mounting points on a 286 mm (11ª in) diameter mounting circle.

With its contemporary grill design, the 8138 provides a stylish upscale look that fits into many dec›rs. The 8138 brings style and performance to basic commercial sound systems.

Features:
- Stylish, contemporary appearance enhances any dec›r.
- Clear sound from an 8 inch dualcone full-range driver.
- Very high sensitivity of 97 dB for maximum sound levels using minimum amplifier power.
- 6W transformer for use on 70V/100V distributed speaker lines
- Installs to in-ceiling backboxes having 4 mounting points on an 11-1/4″ (286 mm) diameter mounting circle.
- For use with MTC-81BB8 backcan and MTC-81TB8 tile bridge
Specifications:
- Component: 200 mm (8 in) Full-Range, Dual-cone
- Frequency Range (-10 dB): 95 Hz – 18 kHz
- Coverage (2 kHz): 90° conical
- Sensitivity (2.83V@ 1m): 97 dB (1 kHz – 8 kHz)
- Driver Power Capacity:
  40W (160W peak), 2 hrs
  25W (100W peak), 100 hrs
  70V/100V Transformer Taps: 6W, 3W, 1.5W, (0.75W at 70V only)
- Color Codes:
  Black = Common
  Orange = 6W at 70V
  Brown = 3W at 70V; 6W at 100V
  Blue = 1.5W at 70V; 3W at 100V
  White = 0.75W at 70V; 1.5W at 100V
- Termination: Bare Wire
- Magnet: 10 ounces (283 g)
- Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-81BB8. S7232/UL/cUL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Installation: Full assembly consists of 8138 speaker plus MTC-81BB8 backbox and MTC-81TB8 tile bridge. Four screw holes at industry standard 286 mm (11 1/4 in) mounting circle.
- Dimensions (Diameter x Depth): 327 mm (12.9″) diameter baffle x 84 mm (3.3″) depth from back of baffle. Overall depth, 99 mm (3.9″)
- Mounting Points: 4 points on 286 mm (11.25 in) dia. mounting circle
- Ceiling Cutout Dimension: 300 mm (11.75″) with tile bridge and backbox. 228 mm (9.0″) diameter as stand alone.
- Net Weight: 1.4 kg (3.0 lb)
- Included Accessories: Integral grille, 4 pcs M4 x 40 mm tapping screws
GTIN:

0050036904674
